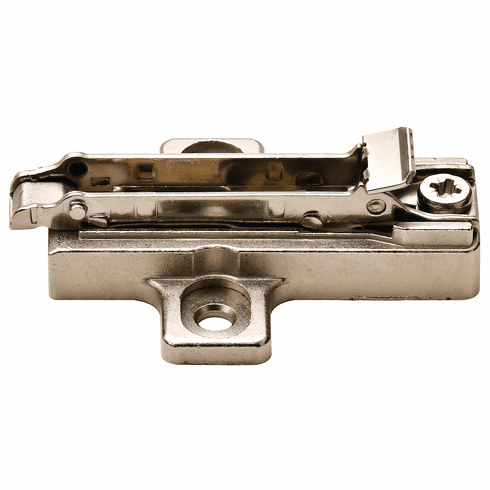

Hafele 329.71.508 Aluminum Frame Wing Mounting Plate, Salice, Without Pre-Installed Euro Screws 9 mm, BAR3R99, nickel-plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.71.508

  Product Title: Aluminum Frame Wing Mounting Plate, Salice, Without Pre-Installed Euro Screws, Quick fixing system, 9 mm, BAR3R99, nickel-plated

  Category: Aluminum Frame Wing Mounting Plate, Salice, Without Pre-Installed Euro Screws, quick fixing system, pre-mounted Euro screws, depth adjustable via eccentric

  Item Details …

  - Automatic Adjustment Response feature: a slight turn of the depth adjustment cam or vertical cam quickly positions hinge – eliminating need for manual positioning by loosening screws.

  - Area of application : For Häfele Metalla 510 concealed hinges

  - Version : with quick fixing system and eccentric adjustment

  - Material : Zinc alloy

  - For drill hole Ø : 2.00 mm

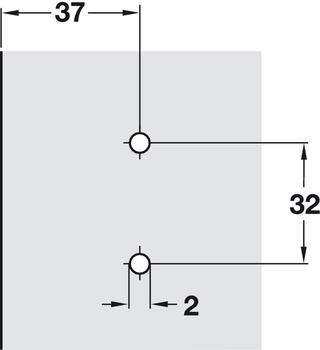

  - Screw distance : 32.00 mm

  - Edge distance : 37.00 mm

  - Adjustment facility : Height adjustment Via eccentric ±2 mm, Depth adjustment Via eccentric -0.5 mm to +2.8 mm

  - Fixing method : Quick fixing system SM

  - Mounting plate version : for screw fixing with chipboard screws
