Hafele 329.71.533 Mounting Plate, Salice, With Pre-Installed 11 mm Euro Screws and Depth Adjustment 7.5 mm Euro screws, 3 mm, BARGR39/20

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.71.533

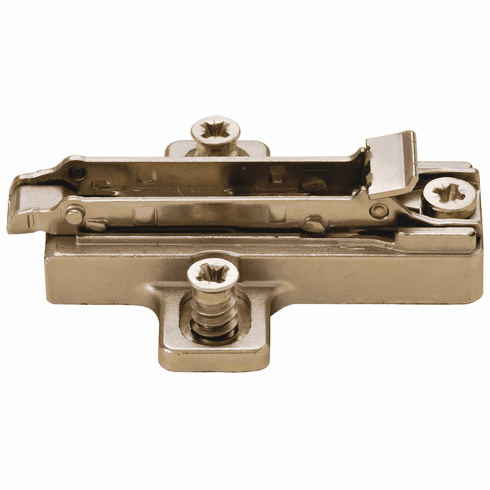

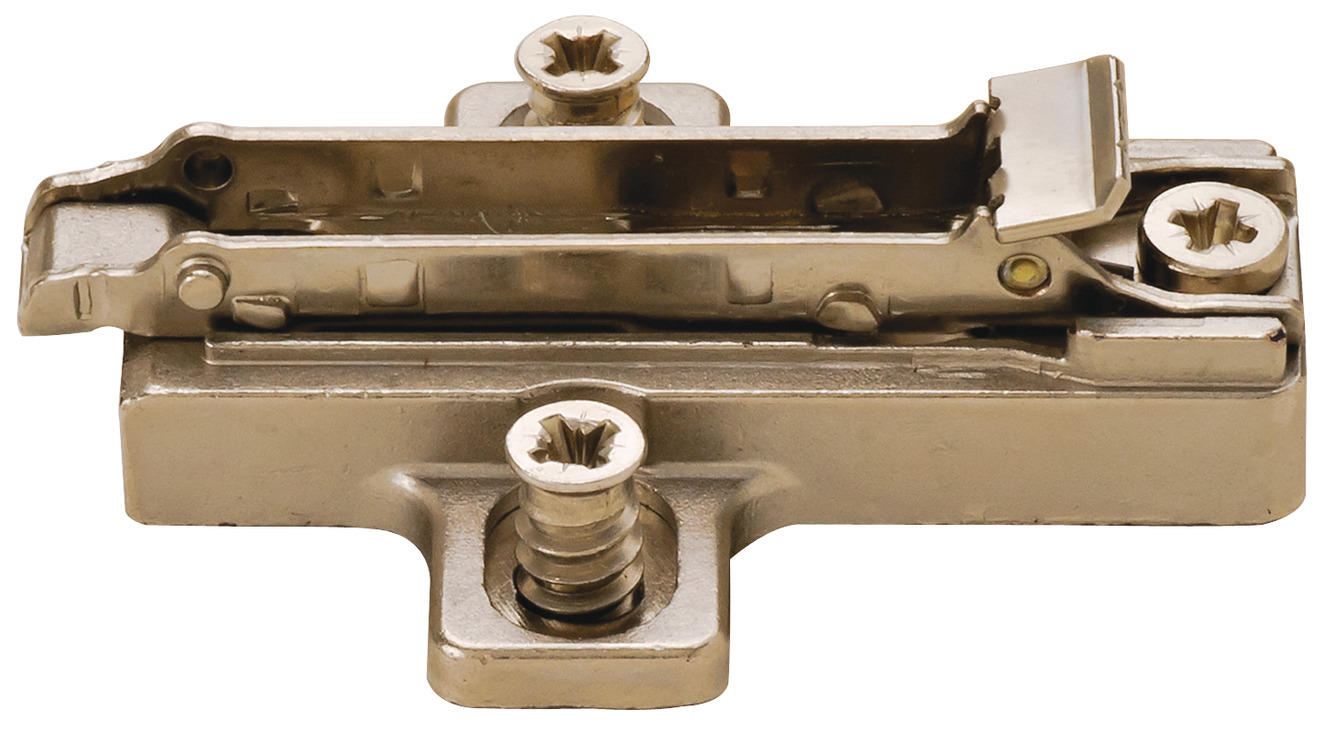

  Product Title: Mounting Plate, Salice, With Pre-Installed Euro Screws, quick fixing system, fixing with chipboard screws, depth adjustable via eccentric, 7.5 mm Euro screws, 3 mm, BARGR39/20

  Category: Mounting Plate, Salice, With Pre-Installed Euro Screws, quick fixing system, fixing with chipboard screws, depth adjustable via eccentric

  Item Details …

  - Spring lever

  - Area of application : For Häfele Metalla 510 concealed hinges

  - Material : Zinc alloy

  - For drill hole Ø : 5.00 mm

  - For side panel thickness :

  - For center panel thickness : 16 mm

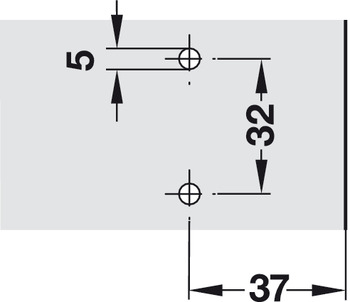

  - Screw distance : 32.00 mm

  - Edge distance : 37.00 mm

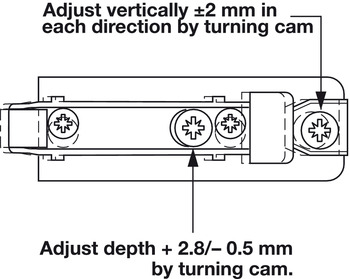

  - Adjustment facility : Height adjustment Via eccentric ±2 mm, Depth adjustment Via eccentric -0.5 mm to +2.8 mm

  - Fixing method : Quick fixing system SM

  - Mounting plate version : For screw fixing with pre-mounted Euro screws

  - Manufacturer : Häfele
