Hafele 329.81.552 Cruciform mounting plate, Duomatic A, steel, pre-mounted Euro screws, for side panel thickness 19 mm, drilling depth 11.0 mm slide-on system, pre-mounted Euro screws, distance D: 3 mm, steel, drilling depth: 11 mm, for side pan

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.81.552

  Product Title: Cruciform mounting plate, Salice, steel, pre-mounted Euro screws, slide-on system, installation with chipboard screws, distance D: 3 mm, steel, drilling depth: 11 mm, for side panel thickness 19 mm

  Category: Cruciform mounting plate, Salice, steel, pre-mounted Euro screws, slide-on system, installation with chipboard screws

  Item Details …

  - Area of application : For Häfele Metalla 510 concealed hinges

  - Material : Steel

  - Color/finish : nickel plated

  - For drill hole Ø : 5.00 mm

  - For side panel thickness : 19 mm

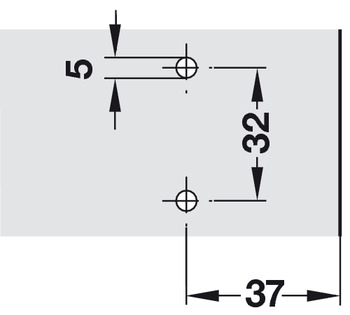

  - Screw distance : 32.00 mm

  - Edge distance : 37.00 mm

  - Adjustment facility : Height adjustment Via slot ±2 mm, Depth adjustment Via eccentric

  - Fixing method : Quick fixing system SM

  - Mounting plate version : For screw fixing with pre-mounted Euro screws

  - Model : 200

  - Manufacturer : Häfele

  - Model series : Metalla 510 A

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data



• Specifications

  Hafele 329.81.552 Salice B2Vgh39/17 Slide-On Mpl Pre/11Mm St Nip 3Mm Mod 5 (5X4.5X1 Cm)


  Product Specifications:
  Contact us for more information.

• Required Products & Optional Accessories

  Optional Accessories:



  • Cruciform Mounting Plate, Salice A, steel, with chipboard screws, edge distance 37 mm
