Hafele 343.61.559 Concealed Hinge, Salice Excenthree 3-Cam, 106 degree Opening Angle, Soft Close, 1 1/4" Overlay Titanium, press-fit, model CUR3AD6R

Product Information

• Description

  Manufacturer: Hafele
  Item: 343.61.559

  Product Title: Concealed Hinge, Salice Excenthree 3-Cam, 106° Opening Angle, Soft Close, 1 1/4" Overlay, Titanium, press-fit, model CUR3AD6R

  Category: Concealed Hinge, Salice Excenthree 3-Cam, 106° Opening Angle, Soft Close, 1 1/4" Overlay,

  Item Details …

  - Ideal for re-facing and other applications where frame thickness varies

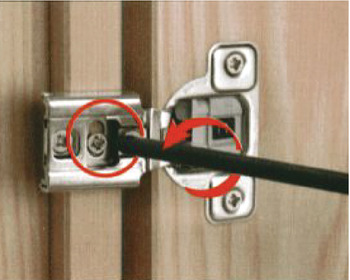

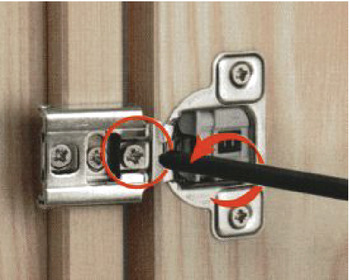

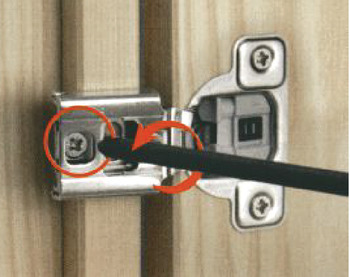

  - Perfect door alignment is simple to achieve with 3 automatic cam adjustments

  - Features an 11mm cup depth to accommodate narrow door profiles

  - The easy to use activation switch allows for closing speed options

  - Tab 2.5mm; Can be increased to 5.5 for special application

  - Zero door protrusion from 3/4 - 1 3/8”

  - Material : Steel

  - Opening angle : 106°

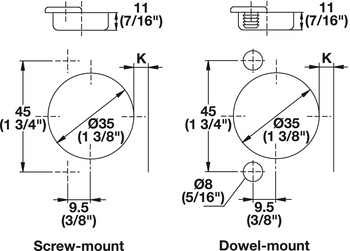

  - Drilling pattern : 45/9.5

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.76



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.71-9.73.pdf
