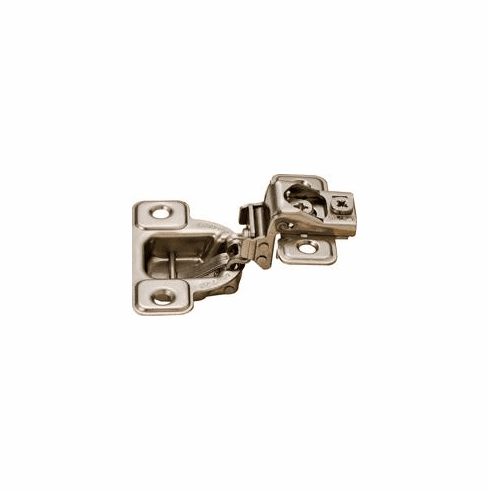

Hafele 343.62.520 Concealed Hinge, Salice Face Frame 3 Cam, 106 degree Opening Angle, Self Close 1 3/8" Overlay, model CSP3C99NR Screw-on

Product Information

• Description

  Manufacturer: Hafele
  Item: 343.62.520

  Product Title: Concealed Hinge, Salice Face Frame 3 Cam, 106° Opening Angle, Self Close, 1 3/8" Overlay, model CSP3C99NR Screw-on

  Category: Concealed Hinge, Salice Face Frame 3 Cam, 106° Opening Angle, Self Close,

  Item Details …

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Opening angle : 106°

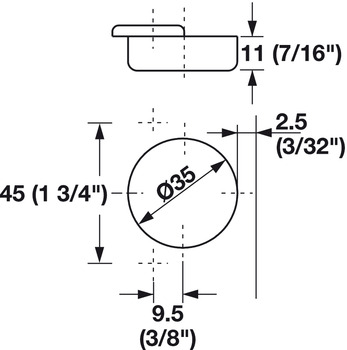

  - Cup drilling depth : 11.00 mm

  - Drilling depth : Hinge cup: 7/16"

  - Cup drilling Ø : 35.00 mm

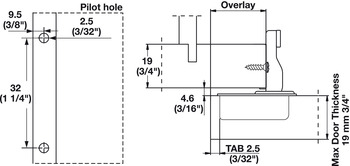

  - Drilling pattern : 45/9.5


  Additional Information …

  Additional overlays available.
