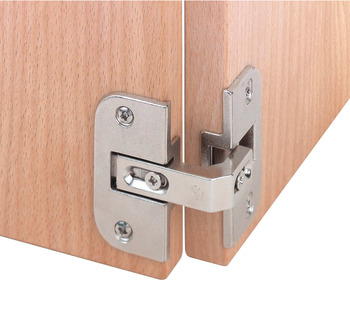

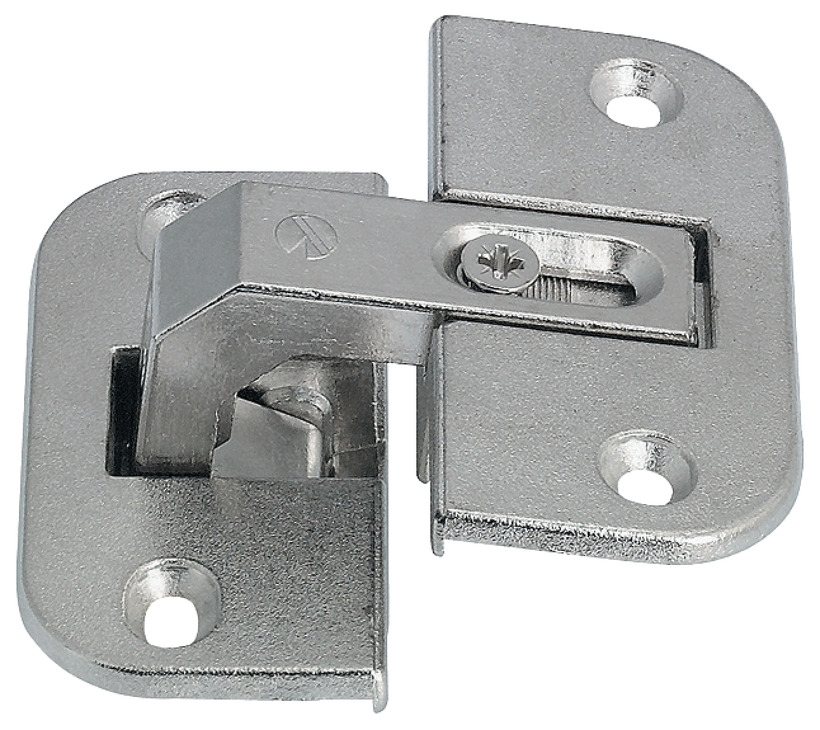

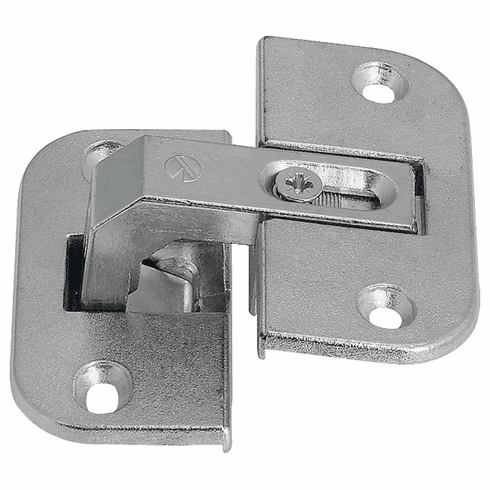

Hafele 343.90.710 Pie-Cut Corner, 78 degree Opening Angle

Product Information

• Description

  Manufacturer: Hafele
  Item: 343.90.710

  Product Title: Pie-Cut Corner, 78° Opening Angle,

  Category: Pie-Cut Corner, 78° Opening Angle,

  Item Details …

  - Meets all design requirements for three-way adjustability, quick mounting, concealed installation and sturdy construction.

  - Door processing for assembly : with cup drilling

  - Material : Zinc alloy

  - Color/finish : nickel plated

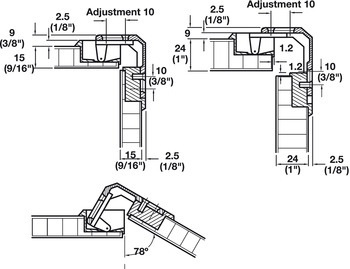

  - Opening angle : 78°

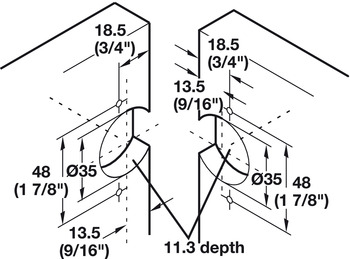

  - Cup drilling depth : 11.00 mm

  - Cup drilling Ř : 35.00 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.82



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.70-9.70.pdf

  Hafele 343.90.710, 343-90-710, 34390710, 343.90


  Specifications/Hafele Catalog - Page# FC9.67: Click to open: Product Specifications on this page. Click to open: Product Specifications in a new window. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader




  Hafele item# ...




• Required Products & Optional Accessories

  Optional Accessories:



  • Zip-R Screw, Flat Countersunk Head, #2 Phillips, with Nibs
  • Zip-R Screw, Flat Countersunk Head, #2 Phillips Drive
  • Zip-R Screw, Flat Countersunk Head, #2 Square Drive, with Nibs
  • Zip-R Screw, Flat Countersunk Head, #2 Square Drive
  • Spax® Screw, Flat Countersunk Head with Uni-Drive, Zinc-Plated
