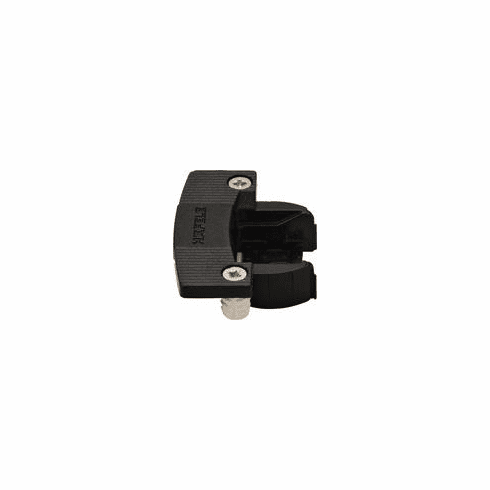

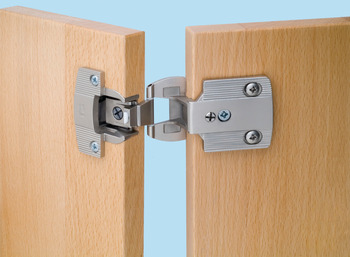

Hafele 344.06.860 Single Pivot Institutional Hinge Cup, Aximat 300, Grade 1, for 8 mm Holes, Dowel Mount Black

Product Information

• Description

  Manufacturer: Hafele
  Item: 344.06.860

  Product Title: Single Pivot Institutional Hinge Cup, Aximat® 300, Grade 1, for 8 mm Holes, Dowel Mount, Aximat® 300, Black

  Category: Single Pivot Institutional Hinge Cup, Aximat® 300, Grade 1, for 8 mm Holes, Dowel Mount, Aximat® 300

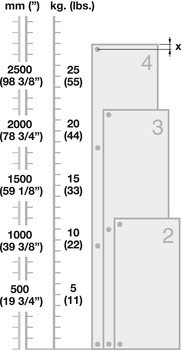

  Item Details …

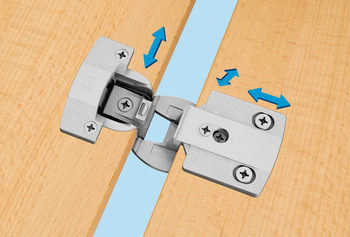

  - Side adjustement, hinge lies directly against the door.

  - Rapid and precise height adjustment of door.

  - Sleek sophisticated design, only 5 mm (3/16”) of knuckle is visible

  - Integrated catch keeps doors closed, no additional magnetic catches required

  - Tested in accordance with ANSI/BHMA Grade 1 standards

  - Area of application : For single cabinets and storage walls

  - Door processing for assembly : with cup drilling

  - Color/finish : nickel plated

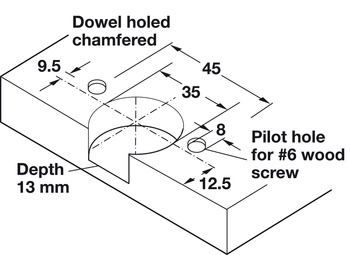

  - Cup drilling depth : 13.00 mm

  - Cup drilling Ø : 35.00 mm

  - Drilling pattern : 45/9.5

  - Order reference

  - #6 wood screws for hinge attachment are not included


  Additional Information …

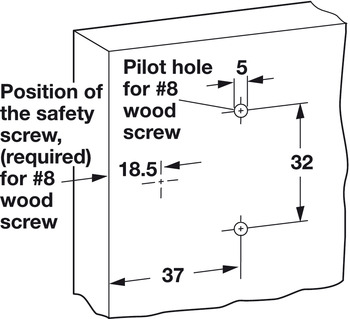

  Installation of safety screw in arm is required.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Aximat 300 Hinge Test Report

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.5



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.50-9.50.pdf

  Hafele 344.06.860, 344-06-860, 34406860, 344.06


  Specifications/Hafele Catalog - Page# FC9.5: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
