Hafele 344.75.790 Aximat hinge for thin phenolic material, 3/4" overlay, zinc, nickel plated (1 piece), 34475790, 344-75-790Zoom

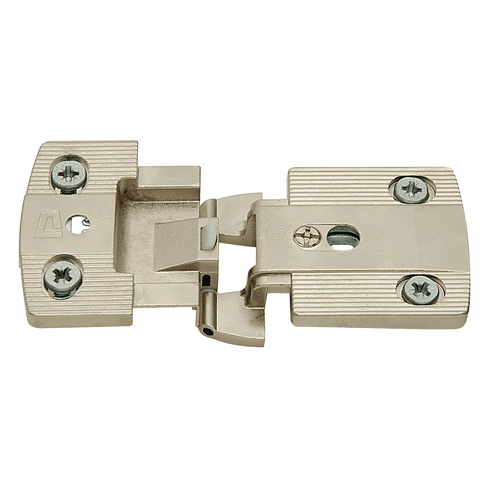

Hafele 344.75.790 Thin Panel Institutional Hinge, Aximat 300, Grade 1, Zinc Alloy 3/4" overlay

$17.49$21.86You Save: $4.37 (20%)
Item# Hafele-344.75.790
Availability: in stock

Product Information

  • Description

    Manufacturer: Hafele
    Item: 344.75.790

    Product Title: Thin Panel Institutional Hinge, Aximat® 300, Grade 1, Zinc Alloy, Zinc alloy, 3D adjustable, for laminated (HPL) doors, 3/4" overlay

    Category: Thin Panel Institutional Hinge, Aximat® 300, Grade 1, Zinc Alloy, Zinc alloy, 3D adjustable, for laminated (HPL) doors

    Item Details …

    -     maximum project quality according to ANSI grade 1 (100,000 cycles)

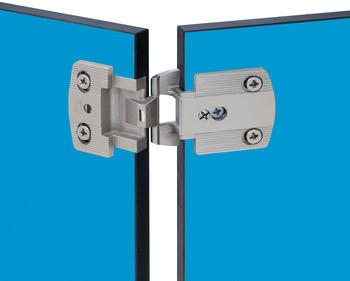

    - Specifically designed for thin panels such Phenolic material

    - Sleep sophisticated design, only 5 mm (3/16”) of knuckle is visible

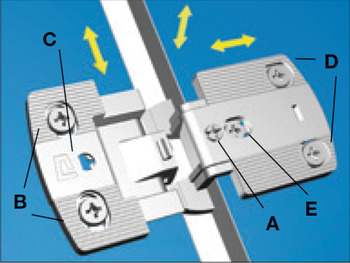

    - 3D adjustment

    - Depth adjustment of ± 1mm is achieved with oblong holes

    - Height adjustment (up and down) of a ±2mm is on the door component

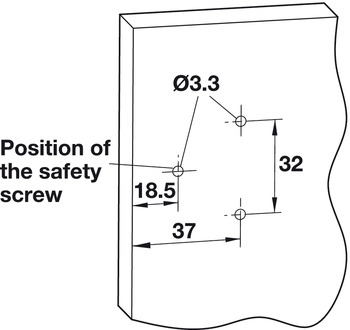

    - The “Safety Screw” can be pre-installed at any time as it does not effect the adjustments, however, it is required.

    - Integrated catch keeps doors closed, no additional magnetic catches required

    - During overlay (side to side) adjustment, the knuckle moves with the door preventing a gap between door’s edge and knuckle

    - Door overlay (side to side) adjustment is on the arm component as opposed to the cup component: offering continuous adjustment of +1/-2 mm in both directions

    - Tested in accordance with ANSI/BHMA Grade 1 standards

    - Area of application : For thin doorsfor laminate panels (HPL)

    - Concealed hinge version : Full overlay/half overlay mounting

    - For door material : laminate

    - Door processing for assembly : without

    - Material : Zinc alloy

    - Color/finish : nickel plated

    - Opening angle : 240°

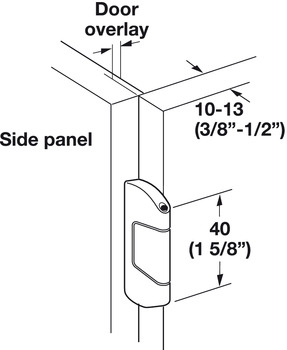

    - For door thickness : 10?–?13 mm

    - Knuckle diameter : 5.00 mm

    - Knuckle length : 47.00 mm

    - Gap : 6.00 mm

    - Adjustment facility : Side adjustment: 1 mm, Height adjustment: -2?–?2 mm, Height adjustment in cup part via eccentricDepth adjustment via horizontal slots in side component

    - Hinge arm fixing : For screw fixing, with spreading dowels and pre-mounted screws

    - Supplied with:

    - Hinge

    - Fixing material (specially coated self-tapping screws)

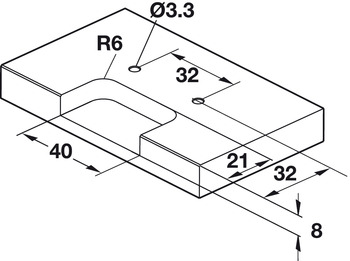

    - 1 twist drill bit Ø 3.3 mm per packing unit 50 pieces


    Additional Information …

    When inserting screws into Phenolic material, they may corrode because of the material’s internal properties. Screw holes should be slightly tapered in Phenolic material to assure a tight fit.

  • Data Sheet

  • Product Resources

  • Specifications

    For detailed PDF specifications, click:
    Hafele Catalog Page: selection_9.7-9.7.pdf

    Hafele 344.75.790 Aximat Flat Panel Hinge 3/4" Overlay Zinc Nip (11X6X3 Cm)

    Product Specifications:
    Contact us for more information.

  • Required Products & Optional Accessories

    Optional Accessories:

    • Thin Panel Institutional Hinge, Grade 1, Stainless Steel
    • Opening Angle Restraint, Less than 120°, for Aximat® 300

  • Brand PDF Catalogs





Cannot find your product? click: Help!. Our product experts will assist you.

Quick Metric Conversions: 25mm = 1 inch (approx), 2.5cm = 1 inch (approx), 96mm = 3.75 inches
