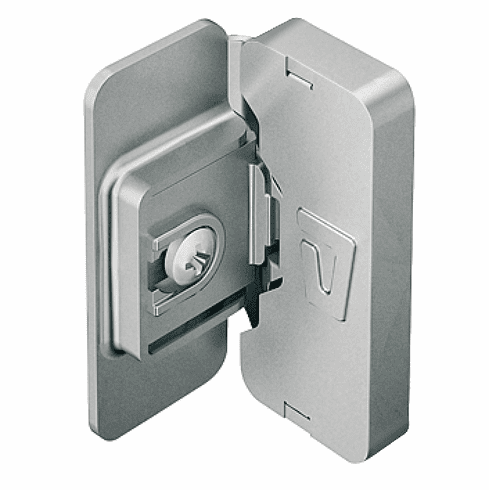

Hafele 344.89.080 Glass Door Hinge, Grade 1, Non-bore, 220 degree for all-glass constructions, for glue fixing (UV glass adhesive bonds)

Product Information

• Description

  Manufacturer: Hafele
  Item: 344.89.080

  Product Title: Glass Door Hinge, Grade 1, Non-bore, 220°, For inset doors, for all-glass constructions, for glue fixing (UV glass adhesive bonds)

  Category: Glass Door Hinge, Grade 1, Non-bore, 220°, For inset doors, for all-glass constructions, for glue fixing (UV glass adhesive bonds)

  Item Details …

  - 3-dimensionally adjustable for door alignment with millimeter accuracy.

  - Furniture Construction : for all-glass constructions

  - Version : With exposed axle

  - Material : Stainless steel, quality 1.4401

  - Color/finish : matt

  - Opening angle : 220°

  - For glass thickness : ?10 mm

  - For glass thickness (inches) : 3/8"

  - Load bearing capacity per pair : 10.00 kg

  - Knuckle diameter : 5.00 mm

  - For door material : glass

  - Door processing for assembly : without glass drilling

  - Door construction : Inset

  - Side panel thickness min. : 3/4"

  - Area of application : For inset doors

  - For door width : ?600 mm

  - Gap : 2.00 mm

  - Adjustment facility : Side adjustment -2 mm, Height adjustment -2?–?2 mm

  - Equipped with : with catch, With exposed axle

  - Installation : For glue fixing (UV glass adhesive bond)

  - Door width max. : 600.00 mm

  - Supplied with:

  - 1 all-glass adhesive hinge

  - 1 set of installation instructions

  - 1 mounting key T-star drive VA


  Additional Information …

  Opening angle dependent on glass thickness.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.179
