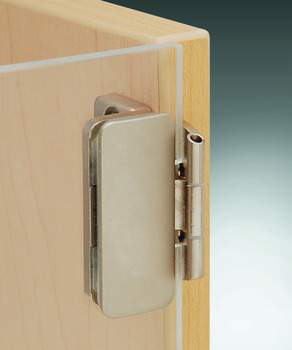

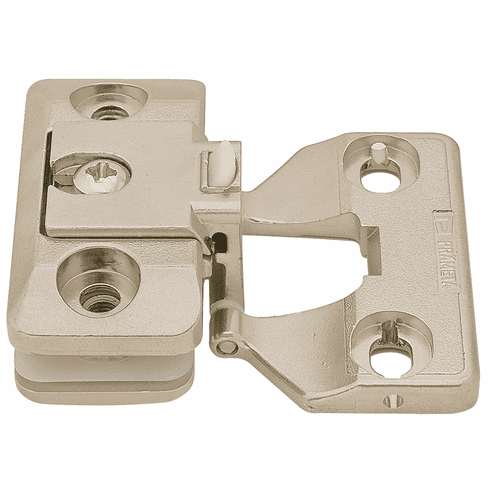

Hafele 344.89.740 Glass Door Hinge, Aximat, 230 degree Opening Angle, Glass to Wood, 3 mm Overlay

Product Information

• Description

  Manufacturer: Hafele
  Item: 344.89.740

  Product Title: Glass Door Hinge, Aximat®, 230° Opening Angle, Glass to Wood, 3 mm Overlay, For glass/wood constructions, nickel plated, opening angle: 230°

  Category: Glass Door Hinge, Aximat®, 230° Opening Angle, Glass to Wood, 3 mm Overlay, For glass/wood constructions, nickel plated, opening angle: 230°

  Item Details …

  - Integrated catch keeps doors closed, no additional magnetic catches required

  - Material : Zinc alloy

  - Opening angle : 230°

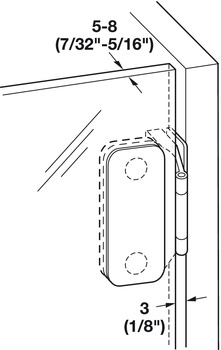

  - For glass thickness : 5?–?8 mm

  - Knuckle diameter : 3.00 mm

  - For door material : wood, glass

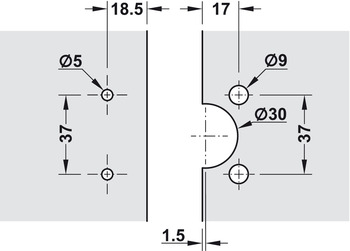

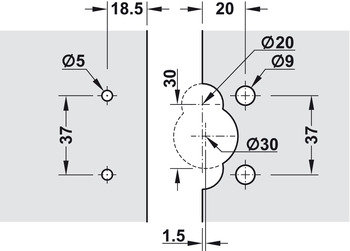

  - For drill hole Ø : 5 mm

  - Door construction : Overlay

  - Side panel thickness min. : 3/4"

  - Area of application : For overlay doors

  - For door width : ?600 mm

  - Adjustment facility : Side adjustment -2 mm, Height adjustment -1?–?1 mm

  - Equipped with : with catch

  - Door width max. : 600.00 mm

  - Supplied with:

  - Mounting screws

  - Plastic protective spacers for glass

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.160-9.161.pdf

  Hafele 344.89.740, 344-89-740, 34489740, 344.89


  Specifications/Hafele Catalog - Page# FC9.145: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
