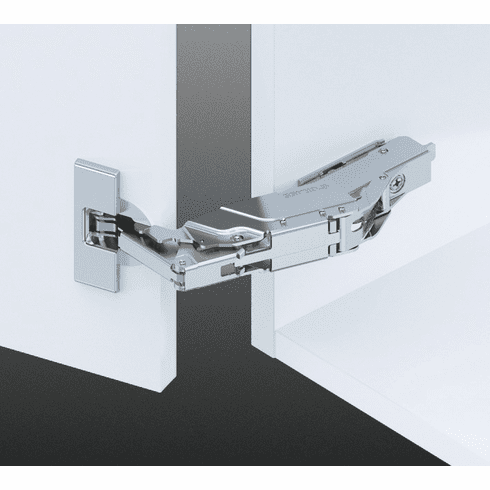

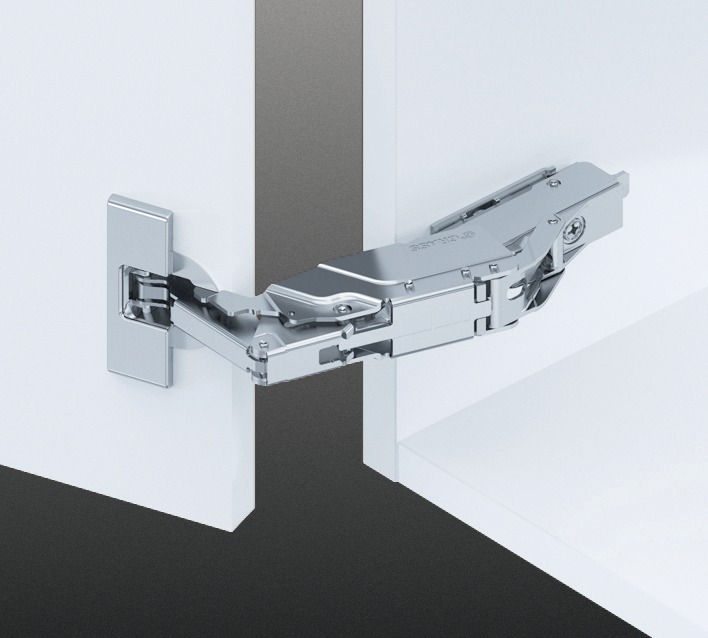

Hafele 348.32.730 Concealed Hinge, Grass TIOMOS, 160 degree Opening Angle, Full Overlay Soft close, impresso, model F017139435217
, 34832730, 348-32-730 "Pin It")
Product Information
Description
Manufacturer: Hafele
Item: 348.32.730
Product Title: Concealed Hinge, Grass TIOMOS, 155º Opening Angle, Full Overlay, Soft close, impresso, model F017139435217
Category: Concealed Hinge, Grass TIOMOS, 155º Opening Angle, Full Overlay,
Item Details …

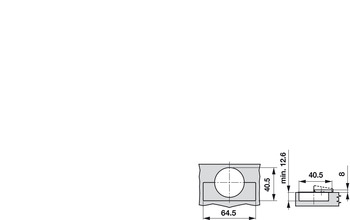

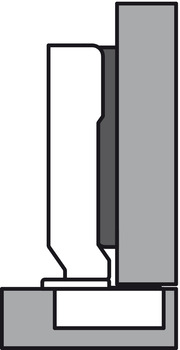

- Dimensions in drawings and tables are calculated using factory settings and for mounting plate height (3/32”) 2 mm.
- Area of application : For large door overlay up to 24 mm
- Concealed hinge version : full overlay plus
- Crank type : Straight
- Door processing for assembly : with cup drilling
- Material : Zinc alloy
- Color/finish :
- Opening angle : 155°
- Cup drilling depth : 10.00 mm
- Drilling depth : 3/8"
- Cup drilling Ø : 35.00 mm
- Cup fixing ___Data Sheet
Product Resources
Specifications
Required Products & Optional Accessories
Optional Accessories:- Opening angle restraint, For Tiomos concealed hinge
- Cover Caps, for Tiomos Concealed Hinge
- Wing Baseplate, Grass TIOMOS 4-Point Fixing with Wood Screws
- Hinge Clip Protector
