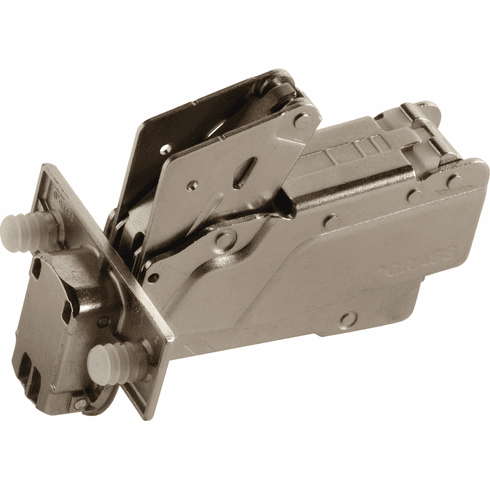

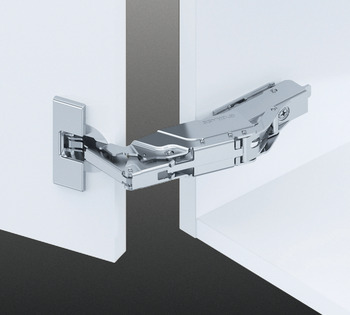

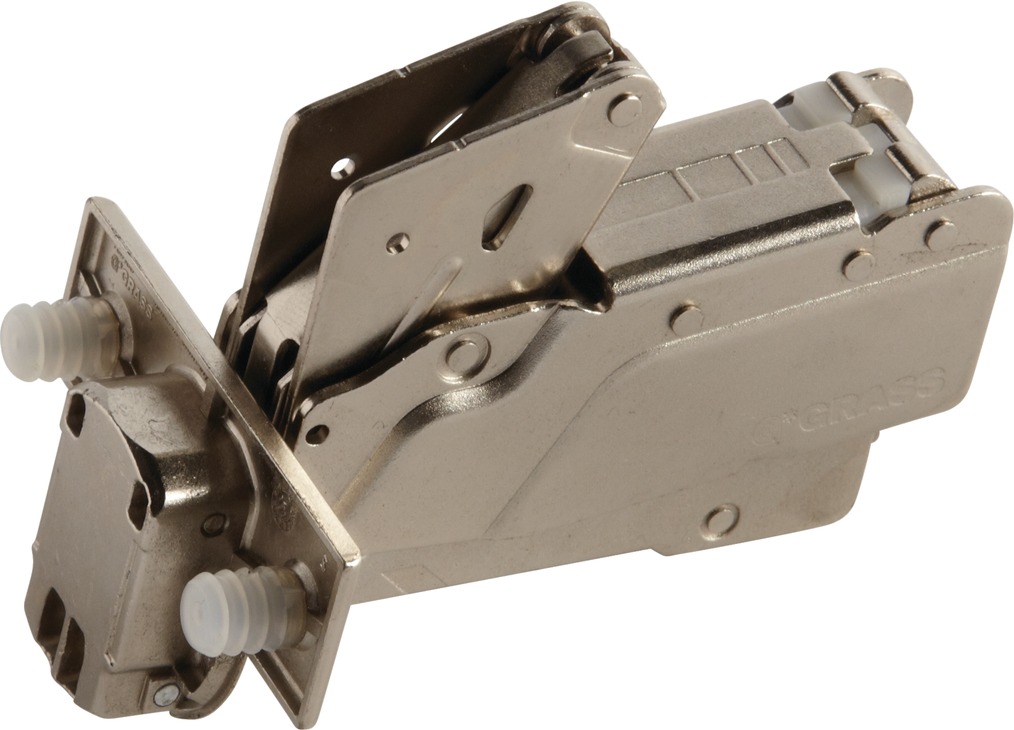

Hafele 348.32.812 Concealed Hinge, Grass TIOMOS, 165 degree Opening Angle, Half Overlay Soft close, press-fit, model F028138566217

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.32.812

  Product Title: Concealed Hinge, Grass TIOMOS, 155° Opening Angle, Half Overlay, for cabinets with internal drawer boxes with railing or pull-out shelves, Soft close, press-fit, model F028138566217

  Category: Concealed Hinge, Grass TIOMOS, 155° Opening Angle, Half Overlay, for cabinets with internal drawer boxes with railing or pull-out shelves

  Item Details …

  - optionally with or without integrated, 3-way adjustable soft closing mechanism in hinge arm

  - Zero offset for use with internal pull outs or extending trays

  - Shallow cup depth of 10 mm

  - surrounding mitre joint connection possible

  - Area of application : for cabinets with internal pull outs or extending trays

  - Concealed hinge version : Half overlay mounting/twin mounting

  - Crank type : High Cranked

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Zinc alloy

  - Color/finish : nickel plated

  - Opening angle : 155°

  - Cup drilling depth : 10.00 mm

  - Drilling depth : Shallow cup: 3/8"

  - Cup drilling Ø : 35.00 mm

  - Adjustment facility : Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2?–?3 mm, Height adjustment depending on mounting plate

  - Installation : Door on cabinet without tools with clip system

  - Installation reference ___


  Additional Information …

  The dimensions specified in the drawings are calculated with a mounting plate distance 2 mm.No minimum gap is required up to door thickness 28 mm. Trial mounting recommended from a door thickness of 29 mm and above.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.53



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.52-9.52.pdf

  Hafele 348.32.812, 348-32-812, 34832812, 348.32


  Specifications/Hafele Catalog - Page# FC9.51: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Opening angle restraint, For Tiomos concealed hinge
  • Cover Caps, for Tiomos Concealed Hinge
  • Wing Baseplate, Grass TIOMOS 4-Point Fixing with Wood Screws
  • Hinge Clip Protector
