Hafele 348.34.610 Concealed Hinge, Grass TIOMOS, 94 degree Opening Angle, Full Overlay Press-fit, self close
, 34834610, 348-34-610 "Pin It")
Product Information
Description
Manufacturer: Hafele
Item: 348.34.610
Product Title: Concealed Hinge, Grass TIOMOS, 94º Opening Angle, Full Overlay, Press-fit, self close
Category: Concealed Hinge, Grass TIOMOS, 94º Opening Angle, Full Overlay,
Item Details …
- Area of application : For thick doors
- Concealed hinge version : full overlay
- Crank type : Straight
- Door processing for assembly : with cup drilling
- Material : Steel
- Opening angle : 94°
- Cup drilling depth : 12.60 mm
- Cup drilling Ø : 35.00 mm
- Adjustment facility : Side adjustment ±2 mm
Additional Information …

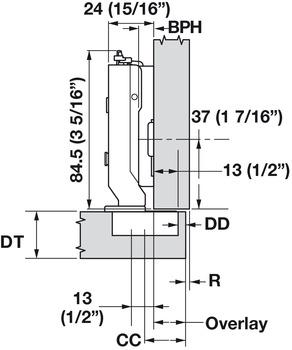

Door overlay over 24mm possible, with side adjustments by ±2 mm.Optimal reveal up to (1 7/16") 36 mm thickness Dimensions in drawings and tables are calculated using factory settings and for mounting plate height (3/32") 2mm.Data Sheet
Product Resources
Specifications
Required Products & Optional Accessories
Optional Accessories:- Wing Baseplate, Grass TIOMOS 4-Point Fixing with Wood Screws
- Cover Caps, for Tiomos Concealed Hinge
- Hinge Clip Protector
