Hafele 348.34.800 Concealed Hinge, Grass TIOMOS, 94 degree Opening Angle, Full Overlay Screw mounting, soft-close

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.34.800

  Product Title: Concealed Hinge, Grass TIOMOS, 94º Opening Angle, Full Overlay, Screw mounting, soft-close, F028138567228

  Category: Concealed Hinge, Grass TIOMOS, 94º Opening Angle, Full Overlay, Screw mounting, soft-close, F028138567228

  Item Details …

  - Area of application : For thick doors

  - Version : With soft closing mechanism

  - Concealed hinge version : full overlay plus

  - Crank type : Straight

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Opening angle : 95°

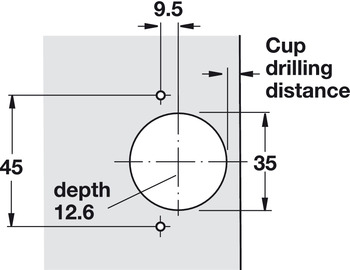

  - Cup drilling depth : 12.60 mm

  - Cup drilling Ø : 35.00 mm

  - Cup fixing : for screw fixing

  - Drilling pattern : 45/9.5

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.49



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.49-9.49.pdf



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Wing Baseplate, Grass TIOMOS 4-Point Fixing with Wood Screws (choose one):


  • Height adjustment via worm gear, Height 0 mm, model F058139746228 Height adjustment via worm gear, Height 2 mm, model F058139747228 Height adjustment via worm gear, Height 3 mm, model F058139748228

    348.38.511 348.38.512 348.38.513

    Click to order Click to order Click to order



  Optional Accessories:



  • Hinge Clip Protector
  • Wing Baseplate, Grass TIOMOS 4-Point Fixing with Wood Screws
