Hafele 348.34.811 Grass Tiomos Hinge, 95 degree opening, 19mm overlay, soft-close, dowel, steel, nickel-plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.34.811

  Product Title: Concealed Hinge, Grass TIOMOS, 94º Opening Angle, Overlay, for thick doors and profile doors up to 36 mm, Screw-on, self-close

  Category: Concealed Hinge, Grass TIOMOS, 94º Opening Angle, Overlay, for thick doors and profile doors up to 36 mm

  Item Details …

  - with soft closing mechanism integrated in hinge arm, with 3 settings

  - Optimum gap dimensions with door thickness of up to 28 mm

  - Area of application : For thick doors

  - Version :

  - Concealed hinge version : full overlay

  - Crank type : Straight

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Color/finish : nickel plated

  - Opening angle : 95°

  - Cup drilling depth : 12.60 mm

  - Cup drilling Ø : 35.00 mm

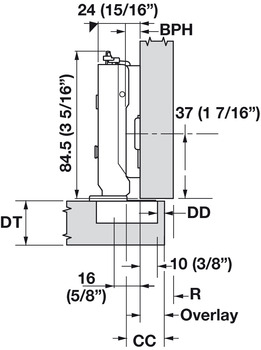

  - Drilling pattern :

  - Adjustment facility : Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2?–?3 mm, Height adjustment depending on mounting plate

  - Installation : Door on cabinet without tools with clip system


  Additional Information …

  Door overlay over 24mm possible, with side adjustments by ±2 mm.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.49



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.49-9.49.pdf



• Required Products & Optional Accessories

  Optional Accessories:



  • Wing Baseplate, Grass TIOMOS 4-Point Fixing with Wood Screws
  • Cover Caps, for Tiomos Concealed Hinge
  • Hinge Clip Protector
