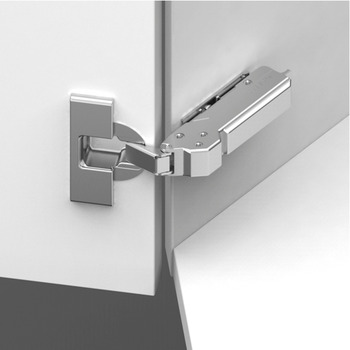

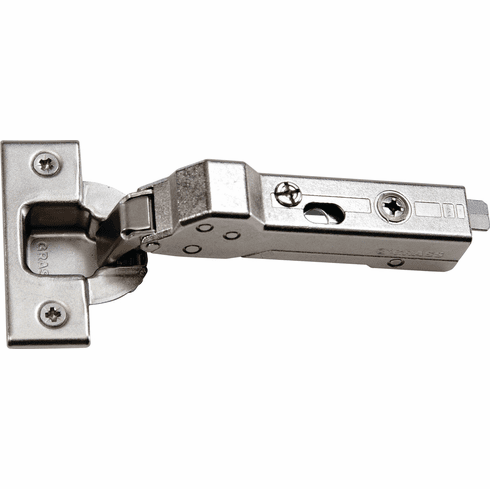

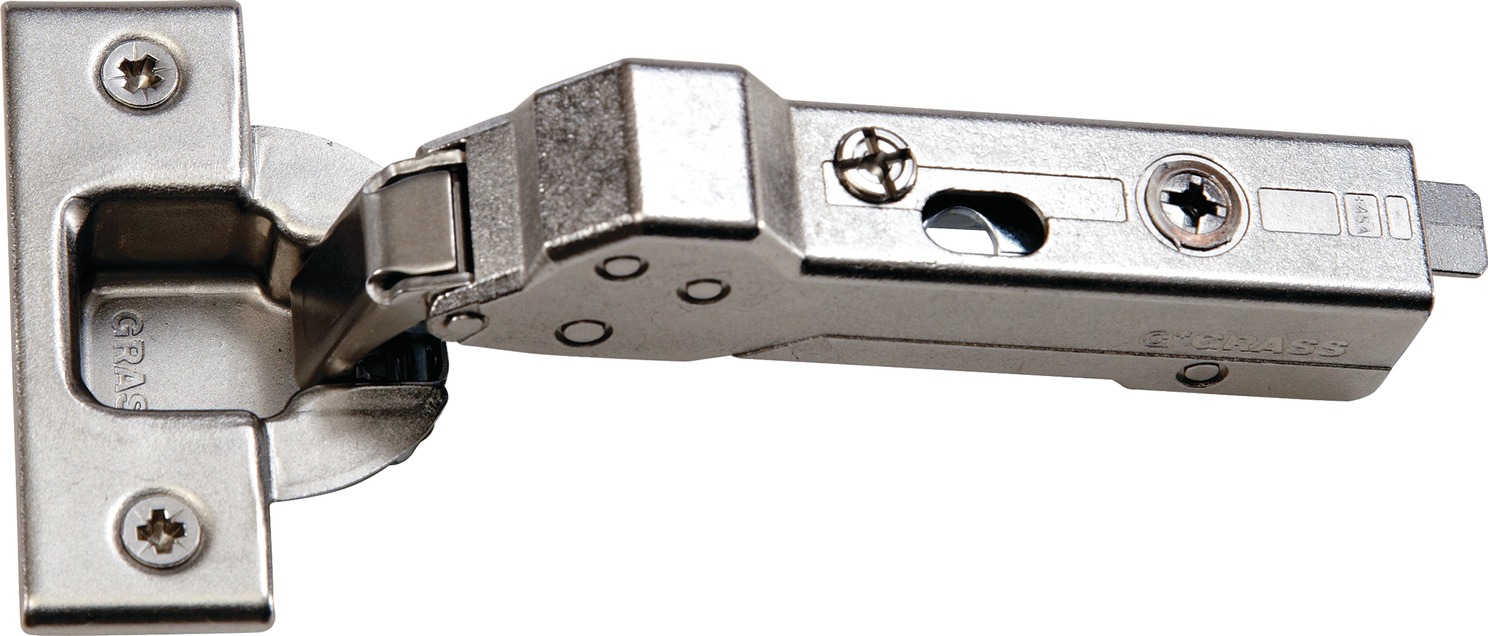

Hafele 348.35.815 Grass TIOMOS, 110 degree Opening Angle, Overlay Mounting Soft-close, press-fit, model F028138543223

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.35.815

  Product Title: Concealed Corner Hinge, Grass TIOMOS, 110° Opening Angle, Overlay Mounting, Soft-close, press-fit, model F028138543223

  Category: Concealed Corner Hinge, Grass TIOMOS, 110° Opening Angle, Overlay Mounting,

  Item Details …

  - Area of application : For corner applications

  - Concealed hinge version : blind corner application

  - Crank type : Cranked

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Cup: Steel, Hinge arm: Zinc alloy

  - Color/finish : nickel plated

  - Opening angle : 110°

  - Corner applications : 45°

  - Cup drilling depth : 12.60 mm

  - Cup drilling Ø : 35.00 mm

  - Cup fixing :

  - Drilling pattern :

  - Adjustment facility : Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2?–?3 mm, Height adjustment depending on mounting plate

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.57



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.55-9.55.pdf

  Hafele 348.35.815, 348-35-815, 34835815, 348.35


  Specifications/Hafele Catalog - Page# FC9.53: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Opening angle restraint, For Tiomos concealed hinge
  • Cover Caps, for Tiomos Concealed Hinge
  • Wing Baseplate, Grass TIOMOS 4-Point Fixing with Wood Screws
  • Hinge Clip Protector
