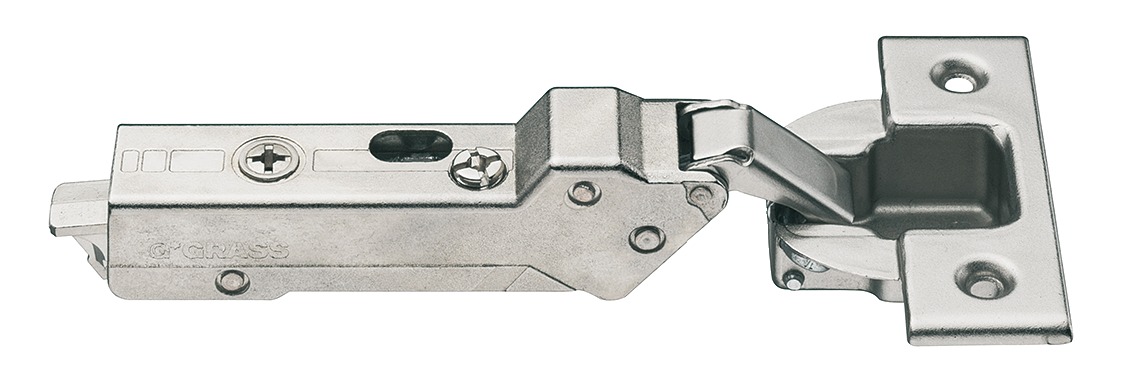

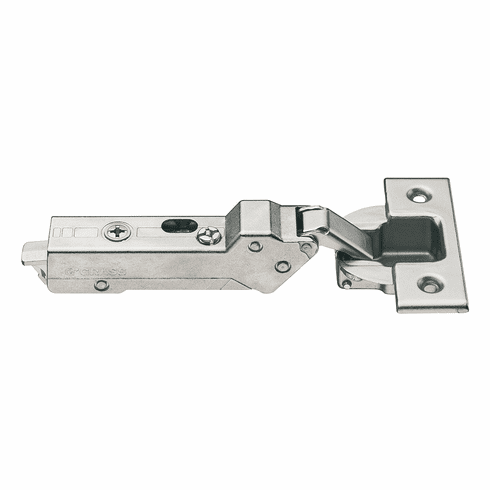

Hafele 348.36.610 Concealed Hinge, Grass TIOMOS, 120 degree Opening Angle, Full Plus Overlay Self-Close, 45/9.5, press-fit, model F045138489228

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.36.610

  Product Title: Concealed Hinge, Grass TIOMOS, 120° Opening Angle, Full Plus Overlay, For standard applications with convenient opening angle, Self-Close, 45/9.5, press-fit, model F045138489228

  Category: Concealed Hinge, Grass TIOMOS, 120° Opening Angle, Full Plus Overlay, For standard applications with convenient opening angle

  Item Details …

  - Convenient opening angle with excellent overlay and gap dimensions up to 24 mm door thickness

  - with soft close integrated in hinge arm, with 3 settings

  - 3 soft close settings, invisibly integrated in hinge arm

  - Area of application : A hinge system for all door applicationsFor large door overlay up to 24 mm

  - Concealed hinge version : full overlay

  - Crank type : Cranked

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Color/finish : nickel plated

  - Opening angle : 120°

  - Cup drilling depth : 12.60 mm

  - Cup drilling Ø : 35.00 mm

  - Adjustment facility : Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2?–?3 mm, Height adjustment depending on mounting plate

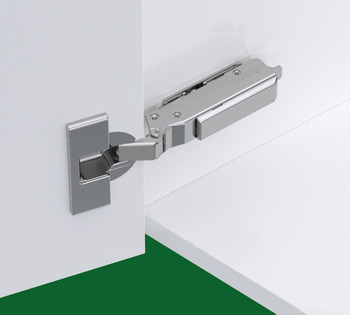

  - Installation : Door on cabinet without tools with clip system


  Additional Information …

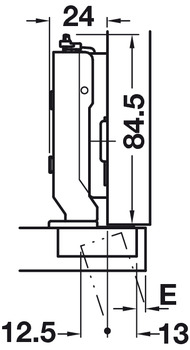

  The dimensions specified in the drawings are calculated with a mounting plate height of 2mm (3/32”).

• Data Sheet

  Detailed Data Sheet

• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.51-9.51.pdf

  Hafele 348.36.610, 348-36-610, 34836610, 348.36


  Specifications/Hafele Catalog - Page# FC9.50: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Opening angle restraint, For Tiomos concealed hinge
  • Wing Baseplate, Grass TIOMOS 4-Point Fixing with Wood Screws
  • Hinge Clip Protector
