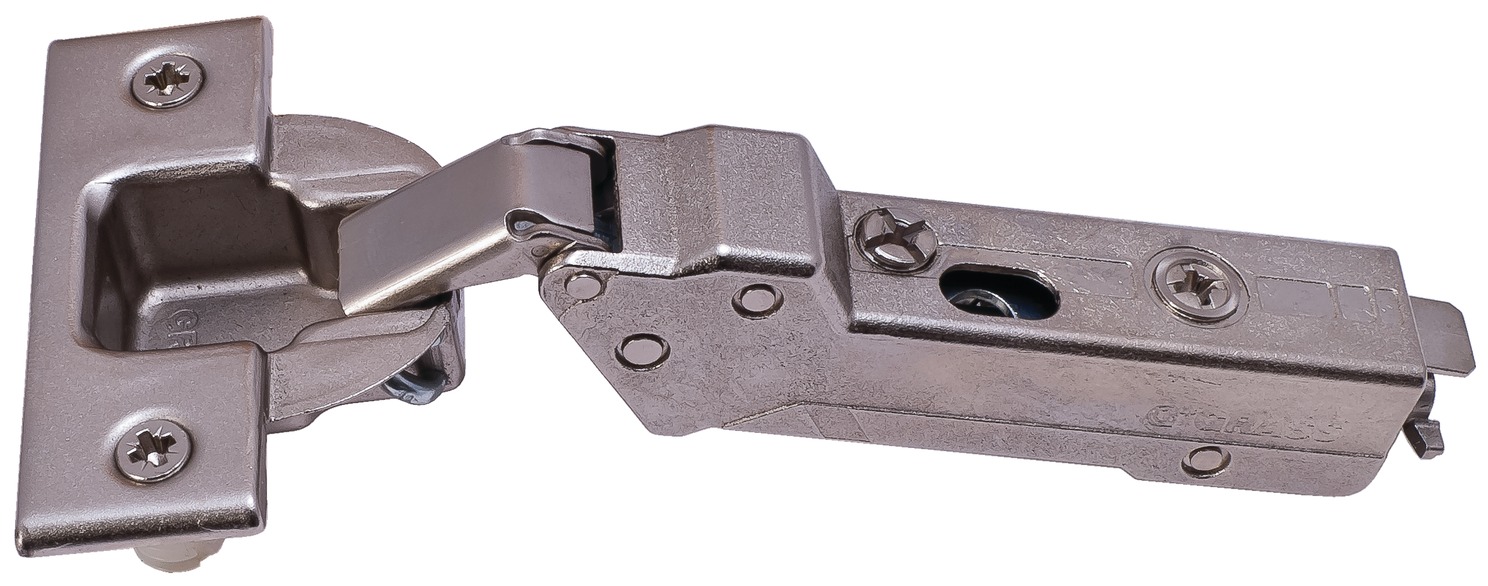

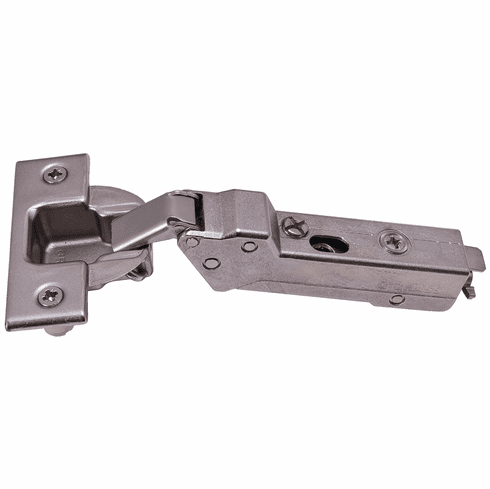

Hafele 348.36.812 Concealed Hinge, Grass TIOMOS, 120 degree Opening Angle, Half Overlay Soft close, press-fit, model F028138553228

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.36.812

  Product Title: Concealed Hinge, Grass TIOMOS, 120° Opening Angle, Half Overlay, Self close, press-fit, model F028138553228

  Category: Concealed Hinge, Grass TIOMOS, 120° Opening Angle, Half Overlay,

  Item Details …

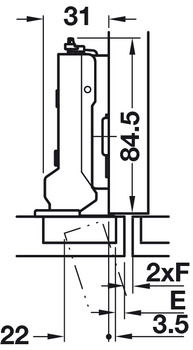

  - Dimensions in drawings and tables are calculated using factory settings and for mounting plate height (3/32”) 2 mm.

  - 3 soft close settings, invisibly integrated in hinge arm

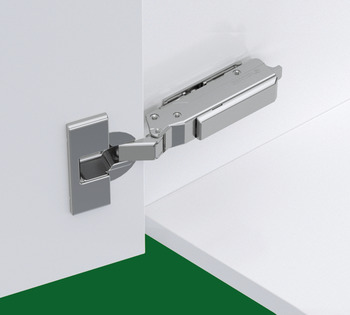

  - Area of application : A hinge system for all door applications

  - Concealed hinge version : half overlay

  - Crank type : Cranked

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Opening angle : 120°

  - Cup drilling depth : 12.60 mm

  - Cup drilling Ø : 35.00 mm

  - Cup fixing :

  - Drilling pattern :

  - Adjustment facility : Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2?–?3 mm


  Additional Information …

  The dimensions specified in the drawings are calculated with a mounting plate height of 2mm (3/32”).

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.52



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.51-9.51.pdf

  Hafele 348.36.812, 348-36-812, 34836812, 348.36


  Specifications/Hafele Catalog - Page# FC9.50: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Opening angle restraint, For Tiomos concealed hinge
  • Wing Baseplate, Grass TIOMOS 4-Point Fixing with Wood Screws
  • Hinge Clip Protector
