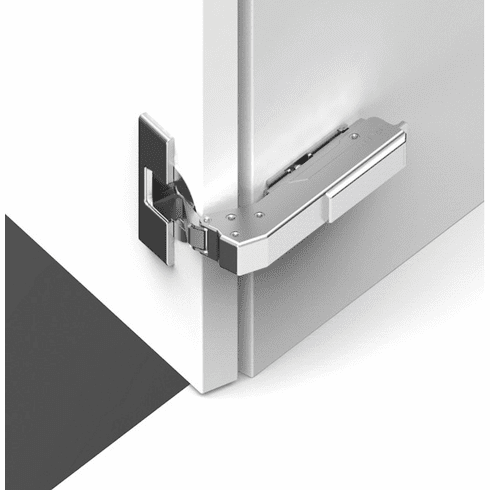

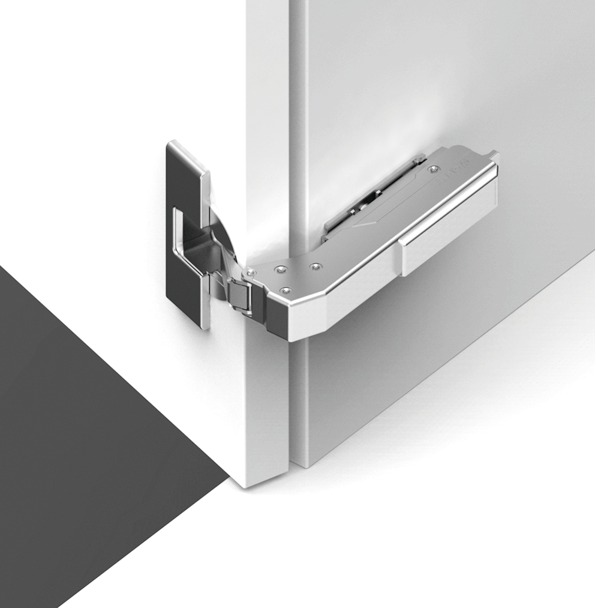

Hafele 348.37.630 Concealed Blind Corner Hinge, Grass TIOMOS, 110 degree Opening Angle, Overlay Mounting Self close, press-fit, model F045138483223

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.37.630

  Product Title: Concealed Blind Corner Hinge, Grass TIOMOS, 110° Opening Angle, Overlay Mounting, Screw fixing cup,, Self close, press-fit, model F045138483223

  Category: Concealed Blind Corner Hinge, Grass TIOMOS, 110° Opening Angle, Overlay Mounting, Screw fixing cup,

  Item Details …

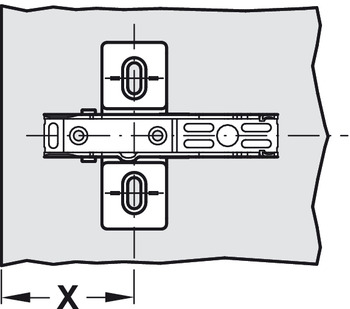

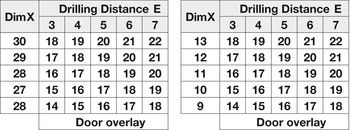

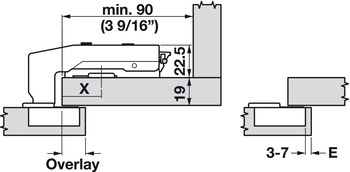

  - Dimensions in drawings and tables are calculated using factory settings and for mounting plate height 3 mm (1/8”).

  - Area of application : For blind corner applications

  - Version :

  - Concealed hinge version : blind corner application

  - Crank type : Straight

  - Door processing for assembly : with cup drilling

  - Material : Cup: Steel, Hinge arm: Zinc alloy

  - Opening angle : 110°

  - Cup drilling depth : 12.60 mm

  - Cup drilling Ø : 35.00 mm

  - Cup fixing :

  - Drilling pattern : 45/9.5

  - Adjustment facility : Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2?–?3 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.56



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.54-9.54.pdf

  Hafele 348.37.630, 348-37-630, 34837630, 348.37


  Specifications/Hafele Catalog - Page# FC9.52: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Wing Baseplate, Grass TIOMOS 4-Point Fixing with Wood Screws (choose one):


  • Height adjustment via worm gear, Height 0 mm, model F058139746228 Height adjustment via worm gear, Height 2 mm, model F058139747228 Height adjustment via worm gear, Height 3 mm, model F058139748228

    348.38.511 348.38.512 348.38.513

    Click to order Click to order Click to order



  Optional Accessories:



  • Opening angle restraint, For Tiomos concealed hinge
  • Hinge Clip Protector
