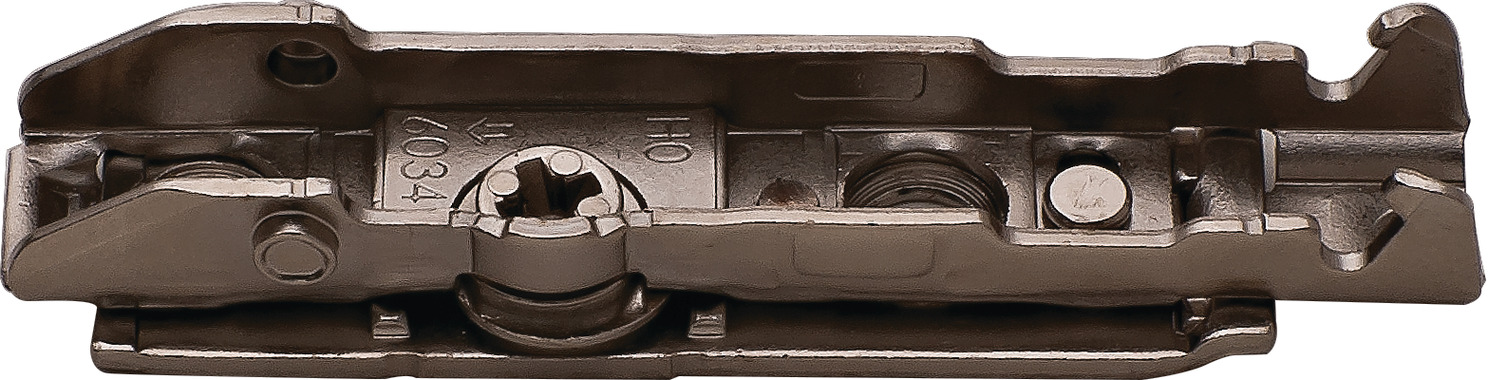

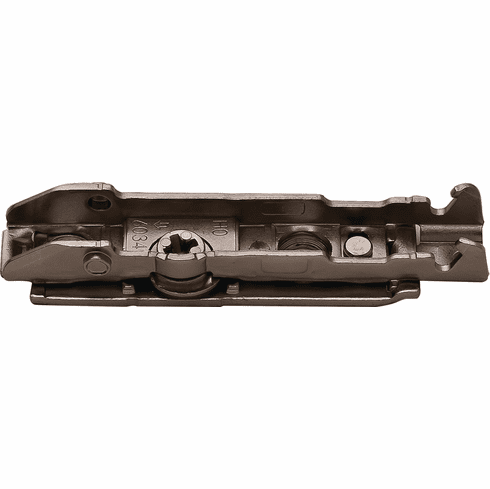

Hafele 348.38.501 Straight Baseplate, Grass TIOMOS 2-Point Fixing with Wood Screws Height 0 mm, model F059139701228

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.38.501

  Product Title: Straight Baseplate, Grass TIOMOS 2-Point Fixing with Wood Screws, Height adjustment via worm gear, Height 0 mm, model F059139701228

  Category: Straight Baseplate, Grass TIOMOS 2-Point Fixing with Wood Screws, Height adjustment via worm gear

  Item Details …

  - Area of application : for Grass Tiomos concealed hinges

  - Material : Steel

  - Color/finish : nickel plated

  - For drill hole Ø : 3.50 mm

  - Screw distance : 32.00 mm

  - Edge distance : 29.00 mm

  - Adjustment facility : Height adjustment Via worm gear ±2 mm

  - Fixing method : clip system

  - Mounting plate version : For screw fixing with chipboard screws or Euro screws

  - Distance :

  - Model : F059139701228

  - Manufacturer : Grass

  - Model series : Tiomos

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.61



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.56-9.57.pdf
