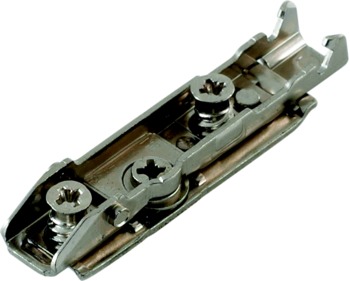

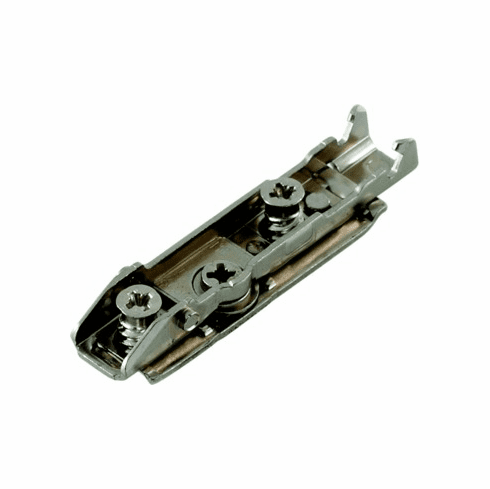

Hafele 348.38.633 Straight Baseplate, Grass TIOIMOS, 2-Point Fixing with Pre-mounted Euro Screw Height 3 mm, model F059139713228

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.38.633

  Product Title: Straight Baseplate, Grass TIOIMOS, 2-Point Fixing with Pre-mounted Euro Screw, Height 3 mm, model F059139713228

  Category: Straight Baseplate, Grass TIOIMOS, 2-Point Fixing with Pre-mounted Euro Screw,

  Item Details …

  - Material : Steel

  - Color/finish : nickel plated

  - For drill hole Ø : 5.00 mm

  - Drilling depth : 13.00 mm

  - Screw length : 13.50 mm

  - Screw distance : 32.00 mm

  - Edge distance : 20.00 mm

  - Adjustment facility : Height adjustment Via worm gear ±2,5 mm

  - Mounting plate version : For screw fixing with pre-mounted Euro screws

  - Distance : 3.00 mm

  - Manufacturer : Grass

  - Model series : Tiomos

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.61



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.56-9.57.pdf

  Hafele 348.38.633, 348-38-633, 34838633, 348.38


  Specifications/Hafele Catalog - Page# FC9.55: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
