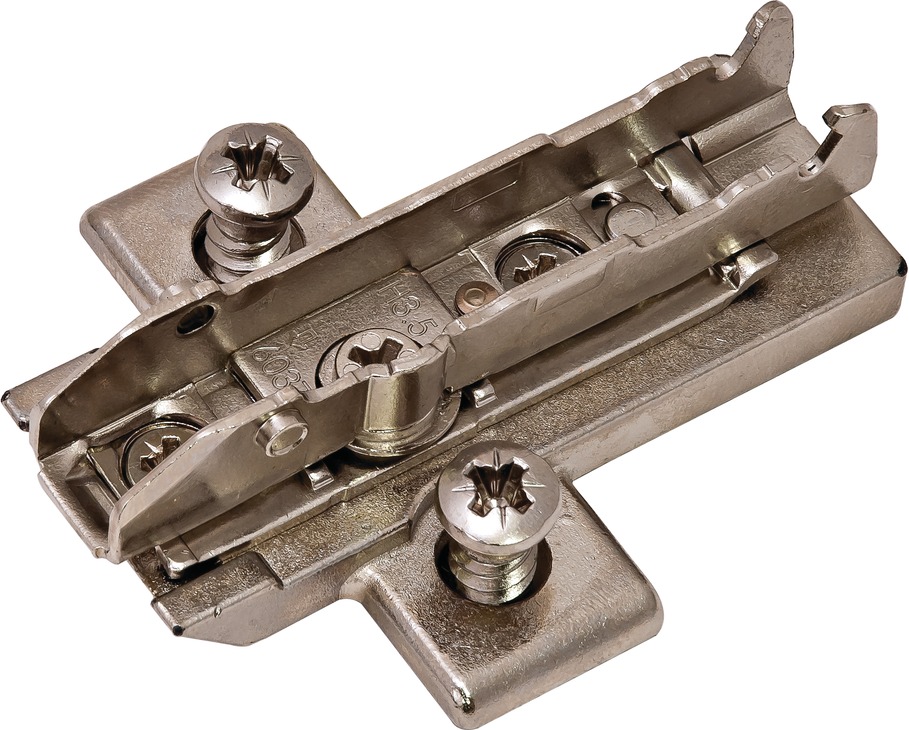

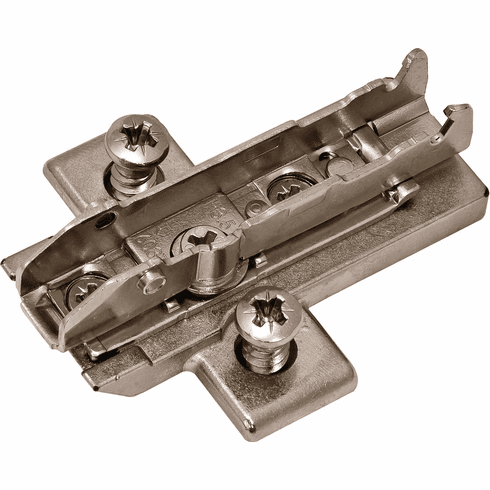

Hafele 348.38.680 Wing Baseplate, Grass TIOMOS 2-Point Fixing with 5 mm Dowels Height: 0 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.38.680

  Product Title: Wing Baseplate, Grass TIOMOS 2-Point Fixing with 5 mm Dowels, Height: 0 mm

  Category: Wing Baseplate, Grass TIOMOS 2-Point Fixing with 5 mm Dowels,

  Item Details …

  - Material : Steel

  - Color/finish : nickel plated

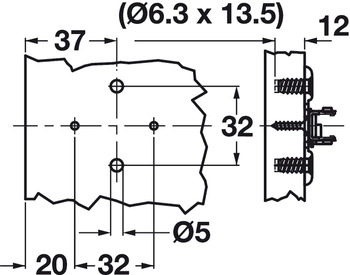

  - For drill hole Ø : 5.00 mm

  - Drilling depth : 12.00 mm

  - Screw length : 13.50 mm

  - Screw distance : 32.00 mm

  - Edge distance : 37.00 mm

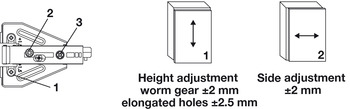

  - Adjustment facility : Height adjustment Via worm gear ±2 mm

  - Manufacturer : Grass

  - Model series : Tiomos

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.60



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.56-9.57.pdf



• Required Products & Optional Accessories

  Optional Accessories:



  • Wedges, for Grass TIOMOS Mounting Plates, +5° Wedge
  • Flat Head Screw, Hospa, countersunk head, PZ, fully threaded
