Hafele 348.39.501 Wing Baseplate, Grass TIOMOS 2-Point Fixing with Euro Screws Height: 6 mm, model F058139873217
, 34839501, 348-39-501 "Pin It")
Product Information
Description
Manufacturer: Hafele
Item: 348.39.501
Product Title: Wing Baseplate, Grass TIOMOS 2-Point Fixing with Euro Screws, Height adjustment via worm gear, Height: 6 mm, model F058139873217
Category: Wing Baseplate, Grass TIOMOS 2-Point Fixing with Euro Screws, Height adjustment via worm gear
Item Details …
- Area of application : for Grass Tiomos concealed hinges
- Material : Steel/Zinc ally
- Color/finish : nickel plated

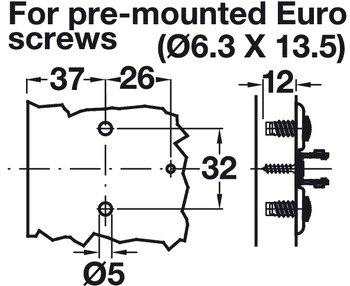

- For drill hole Ø : 5.00 mm
- Drilling depth : 12.00 mm
- Screw length : 13.50 mm
- Screw distance : 32.00 mm
- Edge distance : 37.00 mm

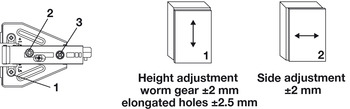

- Adjustment facility : Height adjustment Via worm gear ±2 mm
- Fixing method : clip system
- Mounting plate version : For screw fixing with pre-mounted Euro screws
- Manufacturer : Grass
- Model series : TiomosData Sheet
Product Resources
Specifications
Required Products & Optional Accessories
Optional Accessories:- Wedges, for Grass TIOMOS Mounting Plates, +5° Wedge
- Flat Head Screw, Hospa, countersunk head, PZ, fully threaded
