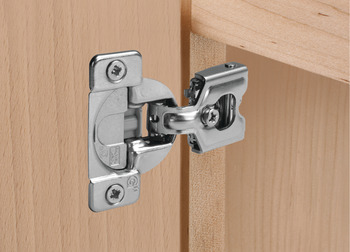

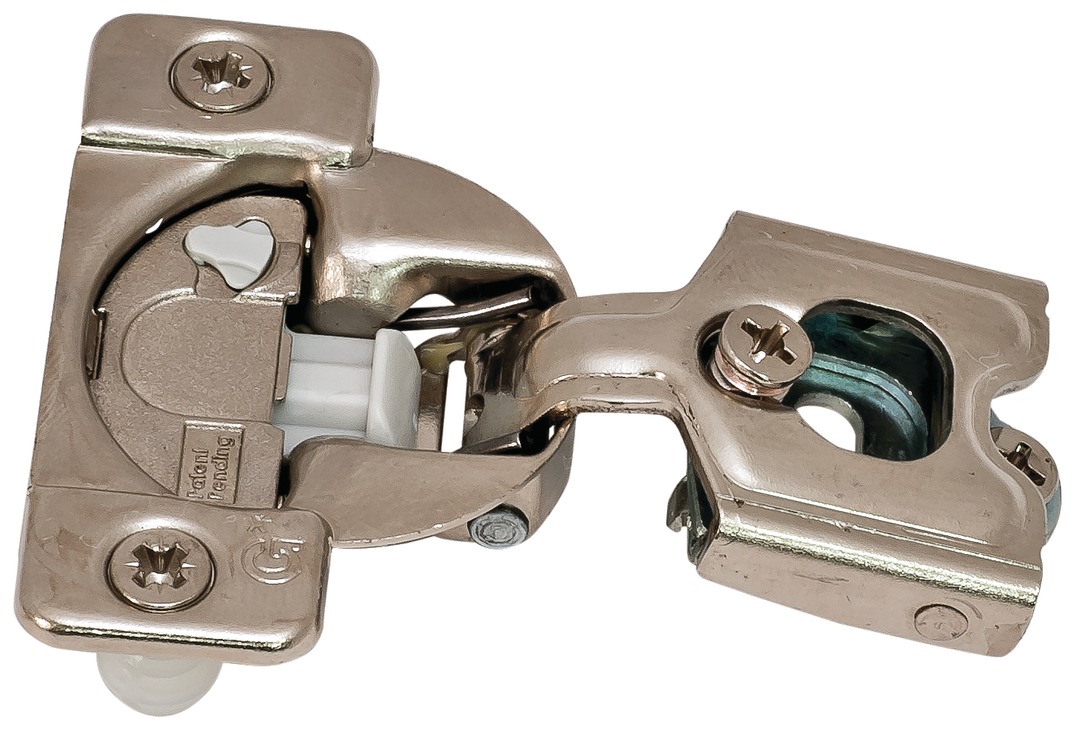

Hafele 348.90.001 Concealed Face Frame Hinge, Grass TEC Side-Mount, 108 degree Opening Angle, Soft-Close 1 1/4" overlay

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.90.001

  Product Title: Concealed Face Frame Hinge, Grass TEC Side-Mount, 108° Opening Angle, Soft-Close, 1 1/4" overlay

  Category: Concealed Face Frame Hinge, Grass TEC Side-Mount, 108° Opening Angle, Soft-Close,

  Item Details …

  - Soft close mechanism is pre-mounted in the hinge cup

  - Adjustment switch to regulate closing action

  - One-piece hinge and base plate

  - 3-dimensional adjustment

  - Cam side and depth adjustment

  - Front locating tabs position hinge on face frame

  - Made in USA

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Opening angle : 108°

  - Cup drilling depth : 11.00 mm

  - Drilling depth : Cup drilling depth: 7/16”

  - Cup drilling Ø : 35.00 mm

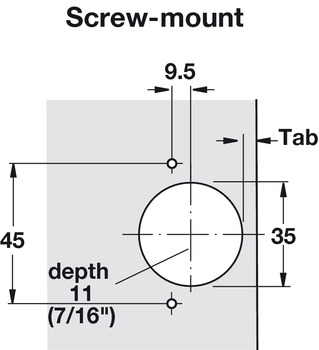

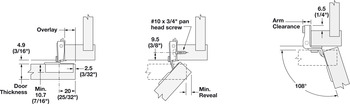

  - Drilling pattern : 45/9.5

  - Installation height : 1/4 – 1 1/2” or > 1 7/16"

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.78



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.74-9.75.pdf



  Please contact us for more information about this product
