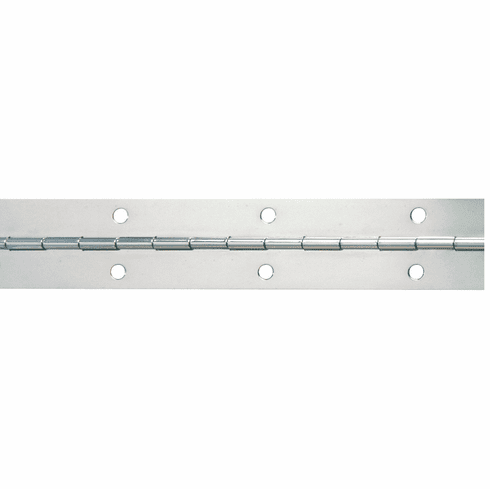

Hafele 351.10.023 Piano Hinge, 72" For furniture, cabinetry, and marine applications, wdth: 1 1/4", stainless steel 304

Product Information

• Description

  Manufacturer: Hafele
  Item: 351.10.023

  Product Title: Piano Hinge, 72", For furniture and cabinetry, wdth: 1 1/4", stainless steel 304

  Category: Piano Hinge, 72", For furniture and cabinetry

  Item Details …

  - Hinges are post-plated and free of machine oil

  - Stainless steel is 304 grade with a bright annealed (BA) finish

  - All holes are countersunk for screws

  - Area of application : For furniture and cabinetry

  - Door processing for assembly : without

  - Hole spacing (inch) : 2"

  - Knuckle length : 12.70 mm

  - Length (inch) : 72"

  - Supplied with:

  - 5 pcs per box


  Additional Information …

  Special order hinges are available in a minimum quantity of 300' (steel) and 150' (SS)

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.89



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.84-9.84.pdf

  Hafele 351.10.023, 351-10-023, 35110023, 351.10


  Specifications/Hafele Catalog - Page# FC9.92: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
