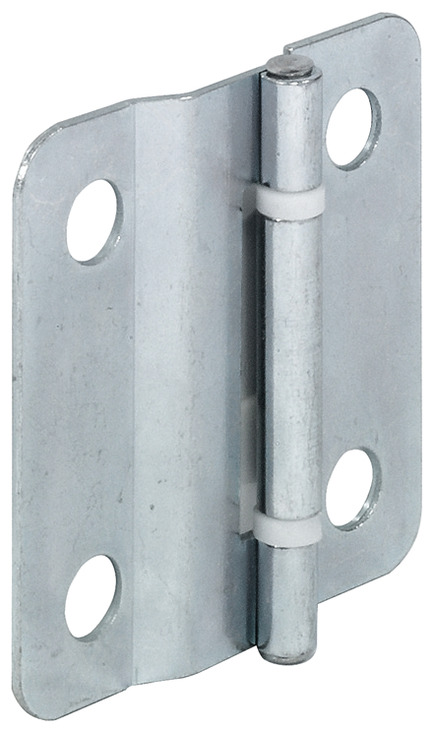

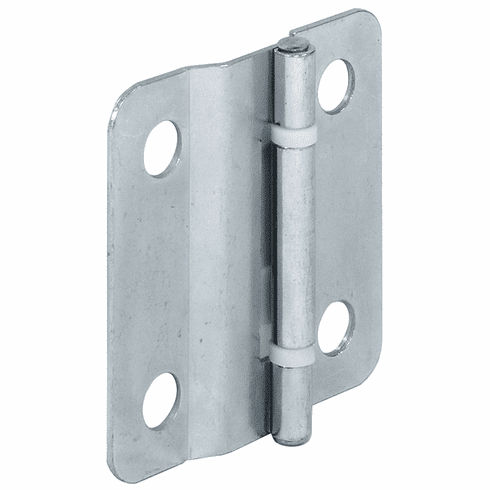

Hafele 354.15.911 Connecting hinge, cranked, with fixed steel pin Slido Fold VF

Product Information

• Description

  Manufacturer: Hafele
  Item: 354.15.911

  Product Title: Connecting hinge, cranked, with fixed steel pin, Slido Fold VF, steel, galvanized

  Category: Connecting hinge, cranked, with fixed steel pin, Slido Fold VF, steel, galvanized

  Item Details …

  - Material : SteelPlastic friction bearing

  - Color/finish : Zinc plated

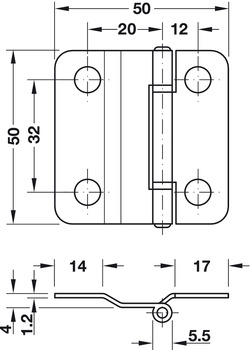

  - Length : 50.00 mm

  - Total width : 50.00 mm

  - Flange thickness : 1.20 mm

  - Knuckle diameter : 5.50 mm

  - Number of drill holes : 4.00

  - Mounting : left or right

  - Product type : Connecting hinge

  - Area of application : For folding sliding doors

  - Version : fixed, with riveted pin

  - Flange shape : rounded

  - Installation : For screw fixing

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data



• Specifications

  Hafele 354.15.911, 354-15-911, 35415911, 354.15


  Specifications/Hafele Catalog - Page# FC7.148: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Euro screw, with Special Cylinder Head, #2 Pozi Drive, Bulk Pack
