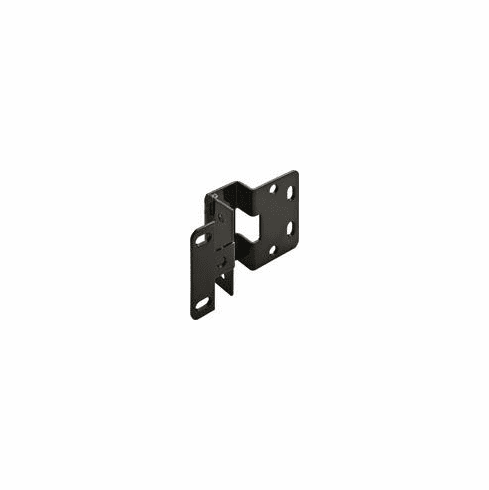

Hafele 354.65.321 Five-Knuckle Institutional Hinge, Grade 1, Opening Angle 270 degree, for 13/16" Door Thickness Powder-coated black

Product Information

• Description

  Manufacturer: Hafele
  Item: 354.65.321

  Product Title: Five-Knuckle Institutional Hinge, Grade 1, Opening Angle 270°, for 13/16" Door Thickness, Powder-coated black

  Category: Five-Knuckle Institutional Hinge, Grade 1, Opening Angle 270�, for 13/16" Door Thickness,

  Item Details �

  - Screws not included. Hinges require #8 Wood Screws or 5 mm with 7.8 mm head Euro screws.

  - Industry Standard 2 3/4” five-knuckle hinge

  - Tumbled to remove sharp edges

  - Tested in accordance with ANSI/BHMA

  - Material : Steel

  - Number of drill holes : 9.00

  - Product type : Five-Knuckle Institutional Hinge

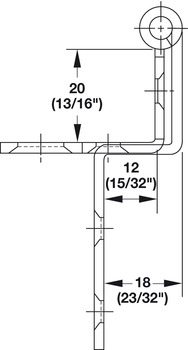

  - For door thickness min. : 13/16"

  - Version : Hospital tips and corners for safetyNon-removable knurled tipTumbled tip to remove sharp edges

  - Crank type : L1

  - Flange shape : rounded

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.11



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.11-9.12.pdf

  Hafele 354.65.321, 354-65-321, 35465321, 354.65


  Specifications/Hafele Catalog - Page# FC9.11: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Wood Screw, Flat Head Countersunk, Phillips Drive
  • Zip-R Screw, Flat Countersunk Head, #2 Phillips Drive
  • Zip-R Screw, Flat Countersunk Head, #2 Square Drive
  • Zip-R Screw, Pan Head, #2 Phillips Drive
  • Spax Screw, Flat Countersunk Head with Uni-Drive, Zinc-Plated
  • Elbow Catch, Deluxe Model, Brass
