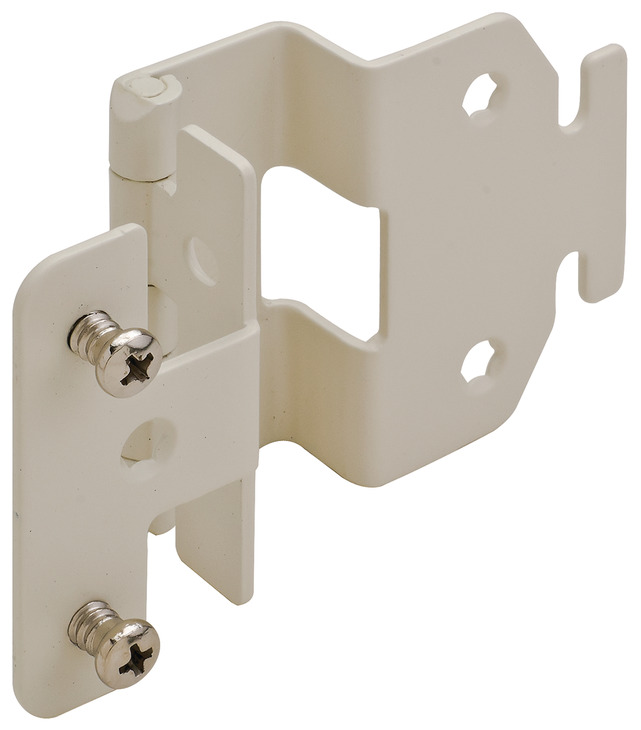

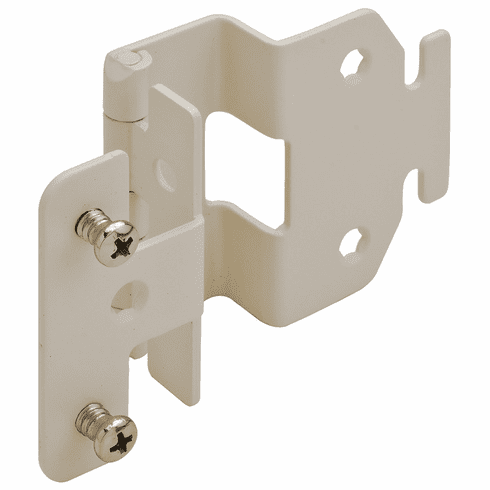

Hafele 354.65.745 Five-Knuckle Institutional Hinge, Advantage 5 K, Grade 1, Opening Angle 270 degree, Steel Powder-coated glass white

Product Information

• Description

  Manufacturer: Hafele
  Item: 354.65.745

  Product Title: Five-Knuckle Institutional Hinge, Advantage 5 K, Grade 1, Opening Angle 270°, Steel, Powder-coated glass white

  Category: Five-Knuckle Institutional Hinge, Advantage 5 K, Grade 1, Opening Angle 270°, Steel,

  Item Details …

  - Hinge knuckles broached for precision pin alignment and smooth operation

  - Hinge leaves punched after forming for precision alignment

  - ANSI/BHMA A-156.9-2001 Grade 1 approved

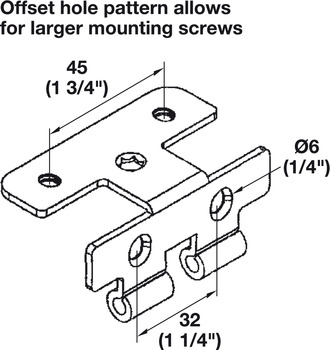

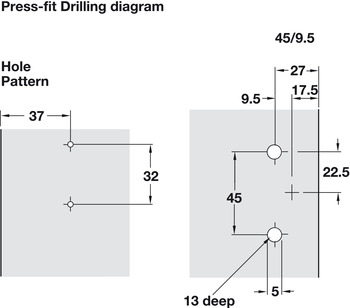

  - Standard drilling equipment can be used

  - Material : Steel

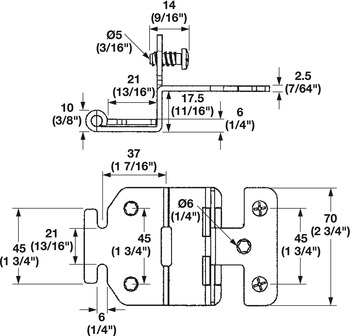

  - Total width :

  - Flange thickness : 2.50 mm

  - Knuckle diameter : 10.00 mm

  - Number of drill holes : 7.00

  - Screw Ř : 5.00 mm

  - Product type : Five-Knuckle Institutional Hinge

  - Area of application : Universal usage on 3/4” & 13/16” materials

  - Version : Pre-mounted 5 mm Euro Screws

  - Flange shape : rounded

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Advantage 5K Hinge Test Report

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.10



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.11-9.12.pdf



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Varianta Steel Screw, Pan Head, Steel, Nickel-Plated (choose one):


  • Nickel plated, length: 14 mm, drive: Cross slot PZ2, Orga-Box

    013.27.702

    Click to order



  Optional Accessories:



  • Zip-R Screw, Flat Countersunk Head, #2 Phillips Drive
  • Zip-R Screw, Flat Countersunk Head, #2 Square Drive
  • Zip-R Screw, Pan Head, #2 Phillips Drive
  • Zip-R Screw, Pan Head, #2 Square Drive
  • Spax® Screw, Flat Countersunk Head with Uni-Drive, Zinc-Plated
  • Spax® Screw, Pan Head Screw with Uni-drive, Zinc-Plated
  • Elbow Catch, Deluxe Model, Brass
