Manufacturer: Hafele
Item: 356.31.100

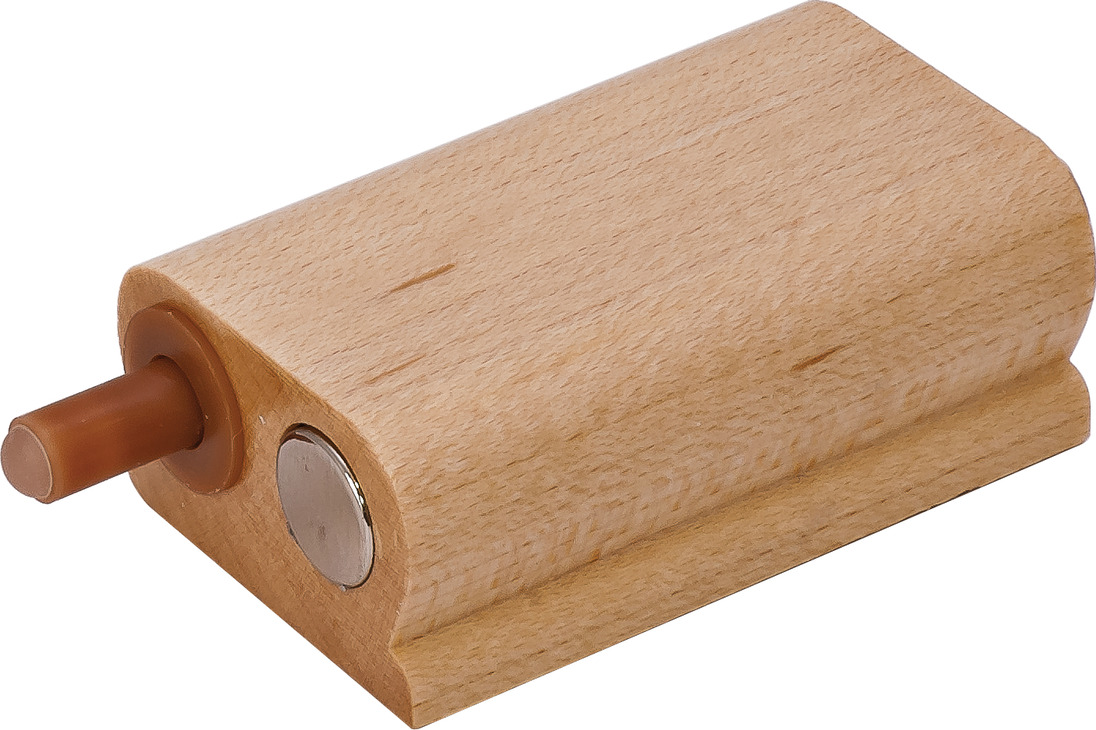

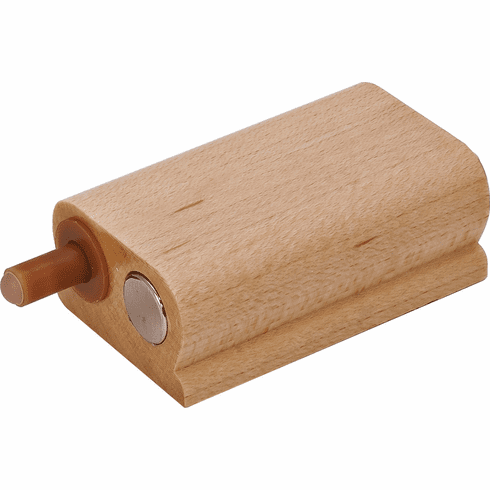

Product Title: Soft-Close Magnetic Catch, for Single Doors, Maple, clear coat finish
Category: Soft-Close Magnetic Catch, for Single Doors,
Item Details …
- Can be used on Frameless or Face Frame Construction
- Free-swinging hinges must be used
- Single blocks are supplied in pairs; L/H and R/H. For appearance sake, they look better if top and bottom magnet align. They also tend to work better if magnet is closest to the hinge side.

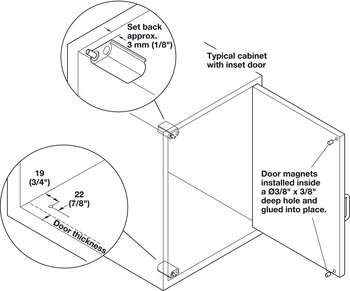

- Recommended pilot hole location for keyhole screw: 19 mm (3/4”) from side panel or edge of style on face frame cabinets. Set back from front edge; door thickness + 22 mm (7/8”). For face frame construction, please provide your own shims if cabinet floor is not flush with top of rail.

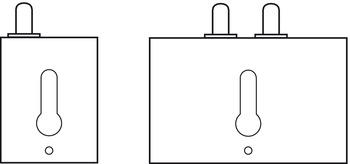

- Easy to install keyhole slot in bottom offers approx. 1/2” of front to back adjustment. When proper location is established, install additional 5/8” screw via hole in back.
- Specifically designed to provide Soft & Silent function on inset doors with free-swinging hinges. Typical application is high-end custom kitchen cabinets utilizing decorative free-swinging hinges
- Utilizes Neodymium magnets and Smove shock absorbers to gently pull doors closed
- Magnets are separated by a rubber bumper, so door closes quietly
- Magnets are strong enough to pull in warped doors (up to 1/4” approx.)
- 2 units per door are recommended; 1 on top and 1 on bottom
- Additional wood species available: unfinished red oak, cherry and walnut
- Suitable for : Utilizes Neodymium magnets and Smove shock absorbers to gently pull doors closedMagnets are separated by a rubber bumper, so door closes quietlyAvailable for single or double-door applications2 units per door are recommended; 1 on top and 1 on bottomMagnets are strong enough to pull in warped doors (up to 1/4" approx.)Can be used on Frameless or Face Frame ConstructionFree-swinging hinges must be usedRecommended pilot hole location for keyhole screw: 19 mm (3/4") from side panel or edge of style on face frame cabinetsRecommended pilot hole location for keyhole screw: set back from front edge; door thickness + 22mm (7/8")Recommended pilot hole location for keyhole screw: for face frme construction; please provide your own shims
- Area of application : For single
- Version : Utilizes Neodymium magnets and Smove shock absorbers to gently pull doors closedMagnets are separated by a rubber bumper, so door closes quietlyAvailable for single or double-door applications2 units per door are recommended; 1 on top and 1 on bottomMagnets are strong enough to pull in warped doors (up to 1/4" approx.)Can be used on Frameless or Face Frame ConstructionFree-swinging hinges must be usedRecommended pilot hole location for keyhole screw: 19 mm (3/4") from side panel or edge of style on face frame cabinetsRecommended pilot hole location for keyhole screw: set back from front edge; door thickness + 22mm (7/8")Recommended pilot hole location for keyhole screw: for face frme construction; please provide your own shims
- Soft closing mechanism installation : For screw fixing
- Material : Maple clear coat
- Supplied with:
- L/H & R/H with Smoves & magnets installed
- Mounting screws
- 2 door magnets with matching mounting screws
- 2 door bumpers
