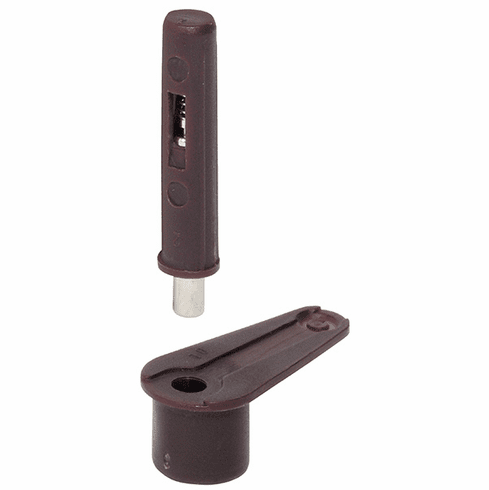

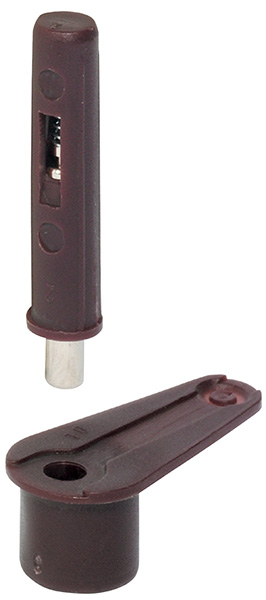

Hafele 361.22.310 Pivot Hinge, 140 degree Opening Angle, Detachable for press fitting, Black

Product Information

• Description

  Manufacturer: Hafele
  Item: 361.22.310

  Product Title: Pivot Hinge, 140° Opening Angle, Detachable, For press fitting, Black

  Category: Pivot Hinge, 140° Opening Angle, Detachable, For press fitting, Black

  Item Details …

  - •To detach door, insert a small screwdriver into hole located in door edge. Then, use screwdriver to lift spring-loaded pin inside lower bushing. Important - Be sure to match holes in door and bushing.

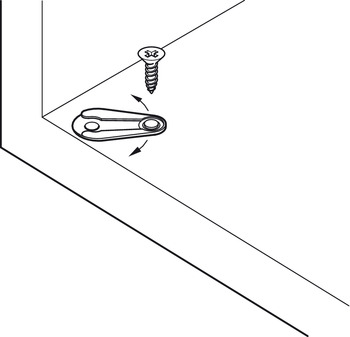

  - •To increase or reduce gap, turn tab on its pivotbearing. Once adjusted as desired, secure tab in position using a small wood screw as shown.

  - Color/finish : Black

  - For door thickness min. : 1/16"

  - Area of application : For concealed installation

  - Material : Plastic

  - Opening angle : 140°

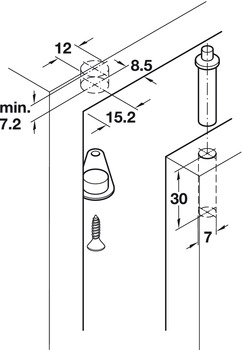

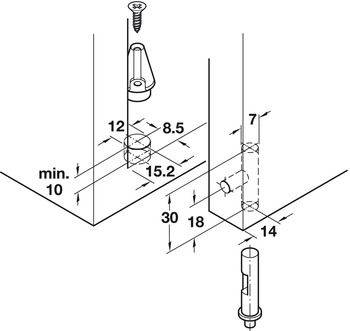

  - For door thickness : 12?–?21 mm

  - Installation : For press fitting

  - Supplied with:

  - 2 pins & 2 bushings

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.91



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.85-9.89.pdf

  Hafele 361.22.310, 361-22-310, 36122310, 361.22


  Specifications/Hafele Catalog - Page# FC9.95: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Zip-R Screw, Flat Countersunk Head, #2 Phillips, with Nibs
  • Zip-R Screw, Flat Countersunk Head, #2 Phillips Drive
  • Zip-R Screw, Flat Countersunk Head, #2 Square Drive, with Nibs
  • Zip-R Screw, Flat Countersunk Head, #2 Square Drive
