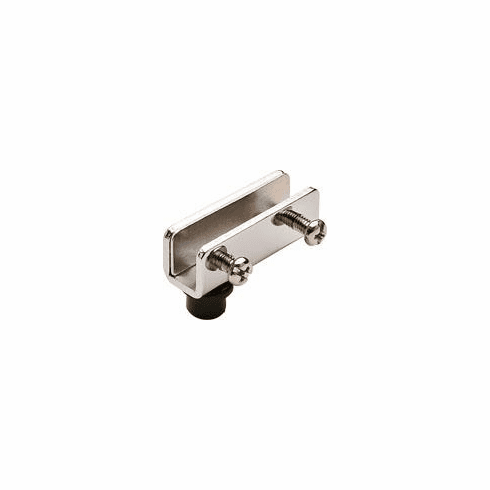

Hafele 361.42.300 Simplex-Inset Glass Door Hinge, Opening Angle 110 degree Non-Bore Hinge, Black

Product Information

• Description

  Manufacturer: Hafele
  Item: 361.42.300

  Product Title: Simplex-Inset Glass Door Hinge, Opening Angle 110°, Non-Bore Hinge, Black

  Category: Simplex-Inset Glass Door Hinge, Opening Angle 110°, Non-Bore Hinge

  Item Details …

  - Furniture Construction : for glass/wood constructions

  - Material : Steel, Socket: Plastic

  - Opening angle : 110°

  - For glass thickness : ?4.7 mm

  - For glass thickness (inches) : 3/16"

  - For door material : wood, glass

  - Door construction : Inset

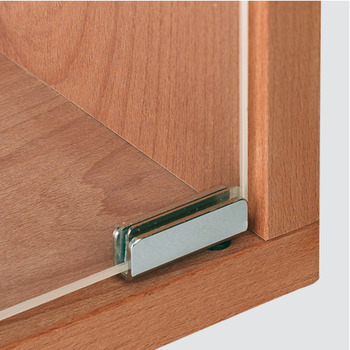

  - Area of application : For inset glass doors

  - For door width : ?400 mm

  - For door height : ?600 mm

  - Equipped with : with socket, Without catch

  - Installation : For inserting into base panelFor clamping to glass door with screw

  - Door width max. : 400.00 mm

  - Door height max. : 600.00 mm

  - Supplied with:

  - Left hinge/Right hinge

  - Self-adhesive pressure plates

  - Screws included


  Additional Information …

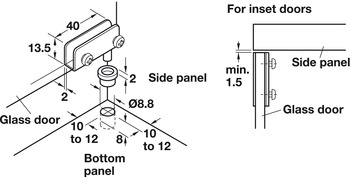

  Dimensions shown on mounting diagrams are only approximate. Please conduct trial mounting to determine your exact dimensions.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.170



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.151-9.151.pdf

  Hafele 361.42.300, 361-42-300, 36142300, 361.42


  Specifications/Hafele Catalog - Page# FC9.139: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
