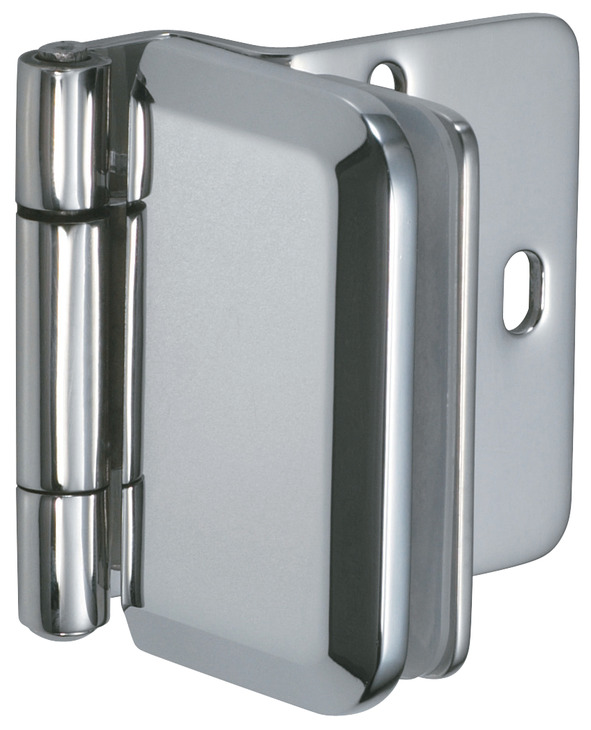

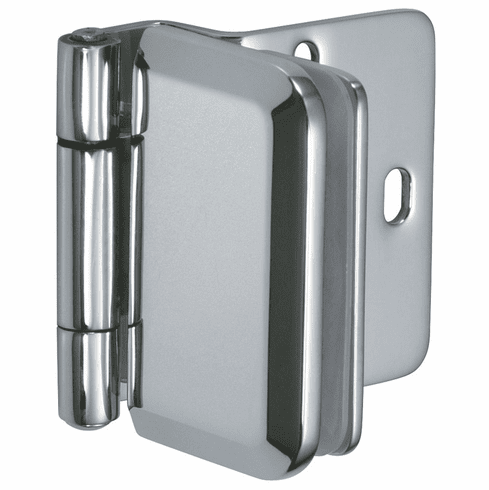

Hafele 361.46.041 Glass Door Hinge, 304 Stainless Steel, for Glass 4 - 6 mm For mid-size glass doors, For half overlay doors

Product Information

• Description

  Manufacturer: Hafele
  Item: 361.46.041

  Product Title: Glass Door Hinge, 304 Stainless Steel, for Glass 4 - 6 mm, For mid-size glass doors, For half overlay doors

  Category: Glass Door Hinge, 304 Stainless Steel, for Glass 4 - 6 mm, For mid-size glass doors

  Item Details …

  - Material : Stainless steel, Cover cap: Zinc alloy

  - Opening angle : 180°

  - For glass thickness : 5?–?8 mm

  - Load bearing capacity per pair : 12.00 kg

  - Knuckle diameter : 8.00 mm

  - For door material : glass

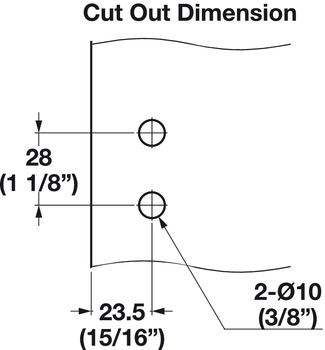

  - Door processing for assembly : with glass drilling

  - For drill hole Ø : 4–10 mm

  - Door construction : Inset

  - Door weight min. : Per pair: 26.4 lbs

  - Area of application : Where resistance to corrosion is needed

  - For door width : ?650 mm

  - For door width (inches) : 25 9/16"

  - For door height : ?900 mm

  - For door height (inches) : 35 7/16"

  - Door width max. : 650.00 mm

  - Door height max. : 900.00 mm

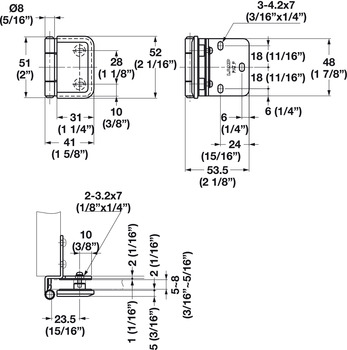

• Data Sheet

  Detailed Data Sheet

• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.157-9.157.pdf

  Hafele 361.46.041, 361-46-041, 36146041, 361.46


  Specifications/Hafele Catalog - Page# FC9.143: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
