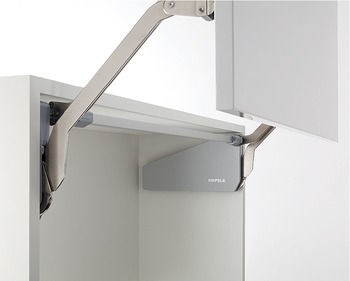

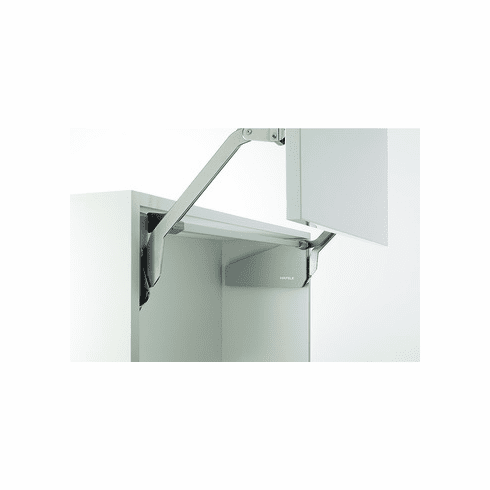

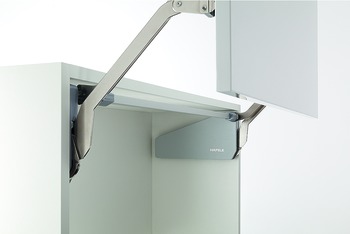

Hafele 372.33.500 Parallel Lift-Up Front Fitting, Free Up For one-piece flaps made of wood, glass or with aluminum frame, Door Weight 6.6-12.5 lbs., Model O1us, end cap: black

Product Information

• Description

  Manufacturer: Hafele
  Item: 372.33.500

  Product Title: Parallel Lift-Up Front Fitting, Free Up, For one-piece flaps made of wood, glass or with aluminum frame, Door Weight 6.6-12.5 lbs., Model O1us, end cap: black

  Category: Parallel Lift-Up Front Fitting, Free Up, For one-piece flaps made of wood, glass or with aluminum frame

  Item Details …

  - Ideal for cabinets with front panels above

  - Modern design thanks to clear lines

  - Minimum opening resistance, multi-position stop function and soft opening and soft closing mechanism for a unique operational feel

  - Efficient and time-saving processing thanks to pins, pre-mounted Euro screws, quick fixing system for front panel and cross bar, and eccentric front panel adjustment

  - For one-piece wood, glass or aluminum frame doors

  - Ideal for upper cabinets or front panels

  - Modern design with clear-cut contours

  - Minimum opening resistance, multi-position stop function and soft opening and soft closing mechanism

  - Time-saving assembly provided by tabs, pre-mounted Euro screws and clip mounting of front panel and cross bar, eccentric adjustment or front panel

  - Area of application : For one-piece flaps made from wood, glass or with aluminium frame

  - Material : Steel

  - Color/finish : Fitting: Nickel plated

  - Color/Finish cover : Gray

  - Lid material : Wood, Glass, Aluminum frame

  - Flap type : one-piece

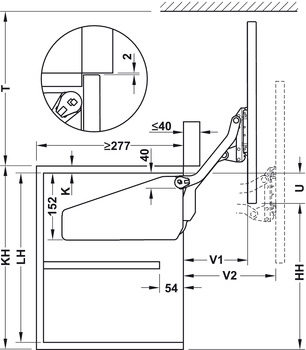

  - For cabinet depth : 277 mm

  - Adjustment facility : height and side adjustment ±3 mm, angle of incline ± 1.5°, adjustment facility for holding power and opening angle

  - Order reference

  - Crossbar and adapters for glass front panels or narrow aluminum frames (if applicable) must be ordered separately.

  - Use two Free up sets for door widths ?1800 mm (70 7/8”).

  - Supplied with:

  - 1 lift up front fitting set (1 piece each left/right, including front fixing brackets for wooden flaps or flaps with wide aluminium frame, installation instructions and paper drilling template)

  - 1 set of cover caps, grey (1 piece each left/right)


  Additional Information …

  Cross bar and adapters for glass front panels or narrow aluminum frames (if applicable) must be ordered separately. Use two Free up sets for door widths >1800 mm (70 7/8”)

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Free up drilling template

  Installation instructions for Free up

  LGA 1501

  Door Weight Calculation Chart



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.132-9.145.pdf



  Please contact us for more information about this product
