Free-Up, P3US, 345-420mm, 17-30lb, fitting only (Hafele Item# 372.33.612)

Product Information

• Description

  Manufacturer: Hafele
  Item: 372.33.612

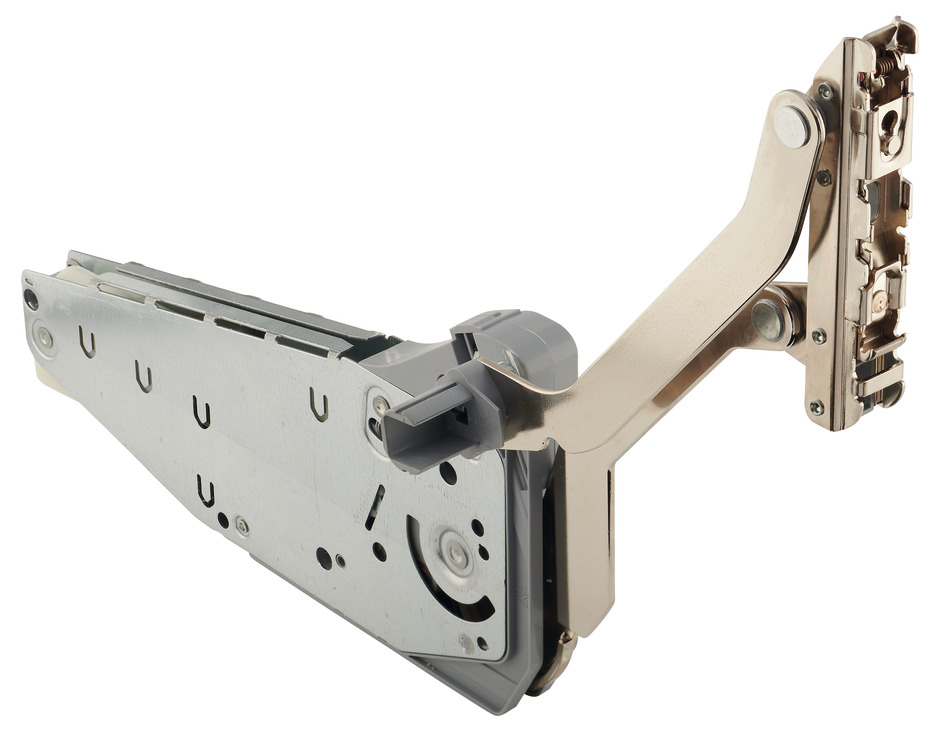

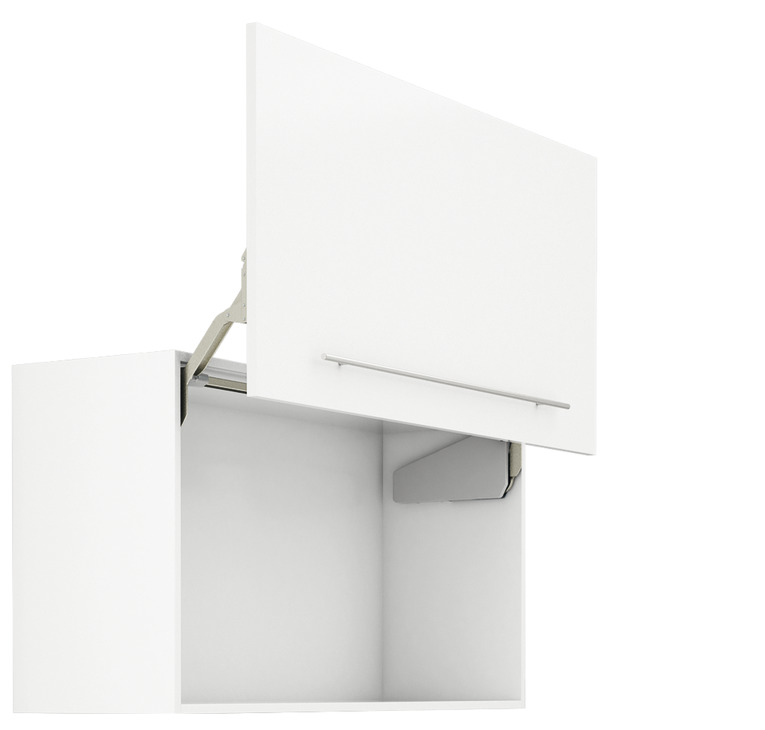

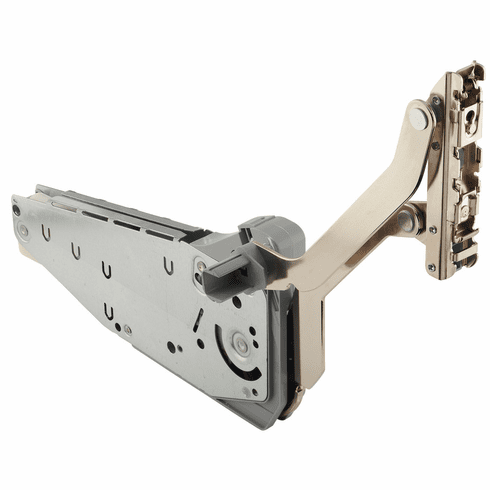

  Product Title: Parallel Lift-Up Front Fitting, Free Up, For one-piece flaps made of wood, glass or with aluminum frame, Cabinet height: 380-500 mm, flap weight: 2.0-3.8 kg

  Category: ,

  Item Details …

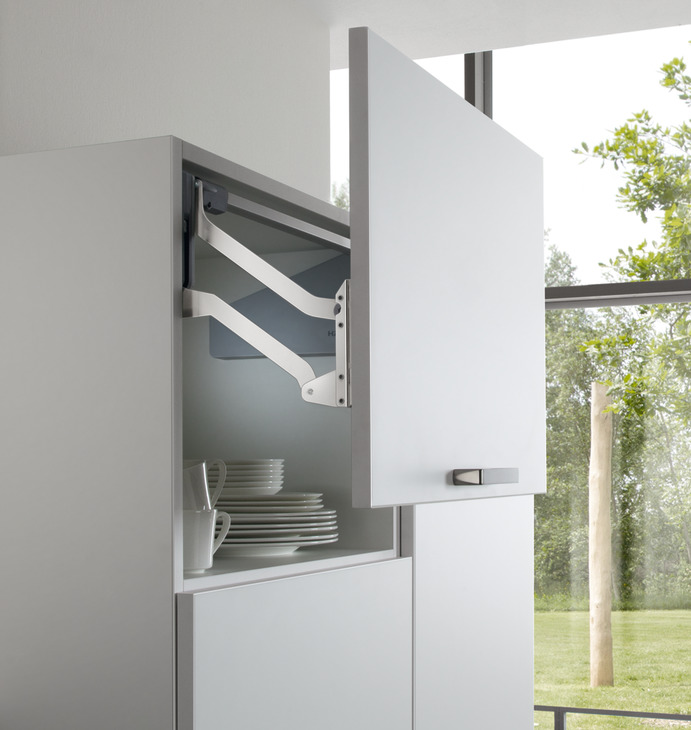

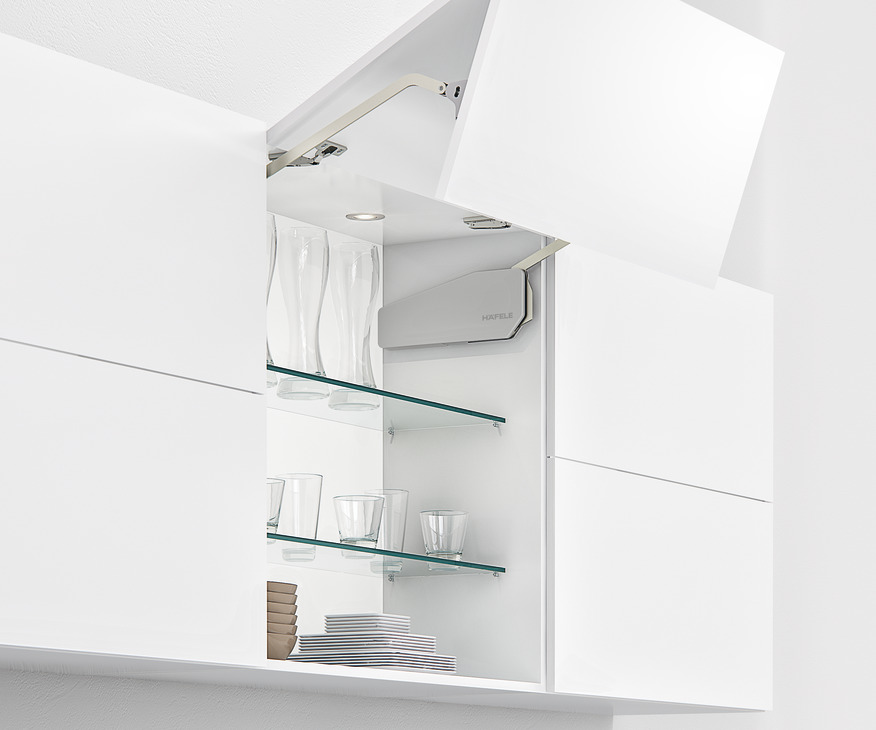

  - Ideal for cabinets with front panels above

  - Modern design thanks to clear lines

  - Minimum opening resistance, multi-position stop function and soft opening and soft closing mechanism for a unique operational feel

  - Efficient and time-saving processing thanks to pins, pre-mounted Euro screws, quick fixing system for front panel and cross bar, and eccentric front panel adjustment

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for Free up

  Installation instructions

  Free up LGA quality certificates

  Free up LGA quality certificates



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Cross Bar, for Free Swing (choose one):


  • For connecting the respective fitting parts, For cabinet width: 600 mm, length: 474 mm For connecting the respective fitting parts, For cabinet width: 900 mm, length: 774 mm For connecting the respective fitting parts, For cabinet width: 1,200 mm, length: 1,074 mm For connecting the respective fitting parts, For cabinet width: 1,800 mm, length: 1,674 mm

    372.33.692 372.33.694 372.33.696 372.33.698

    Click to order Click to order Click to order Click to order



  Optional Accessories:



  • Drilling Jig, for Free Up, Side Wall
  • Drilling Jig, for Front Panel Brackets
