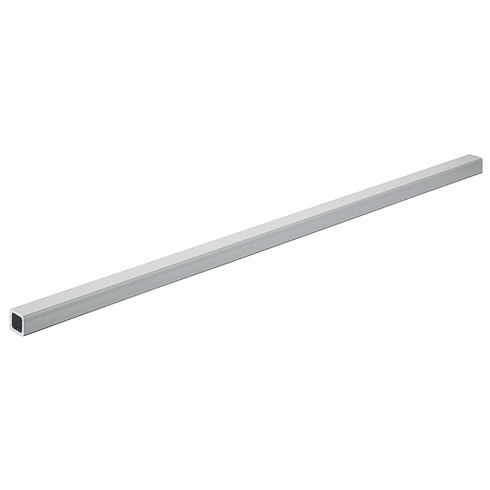

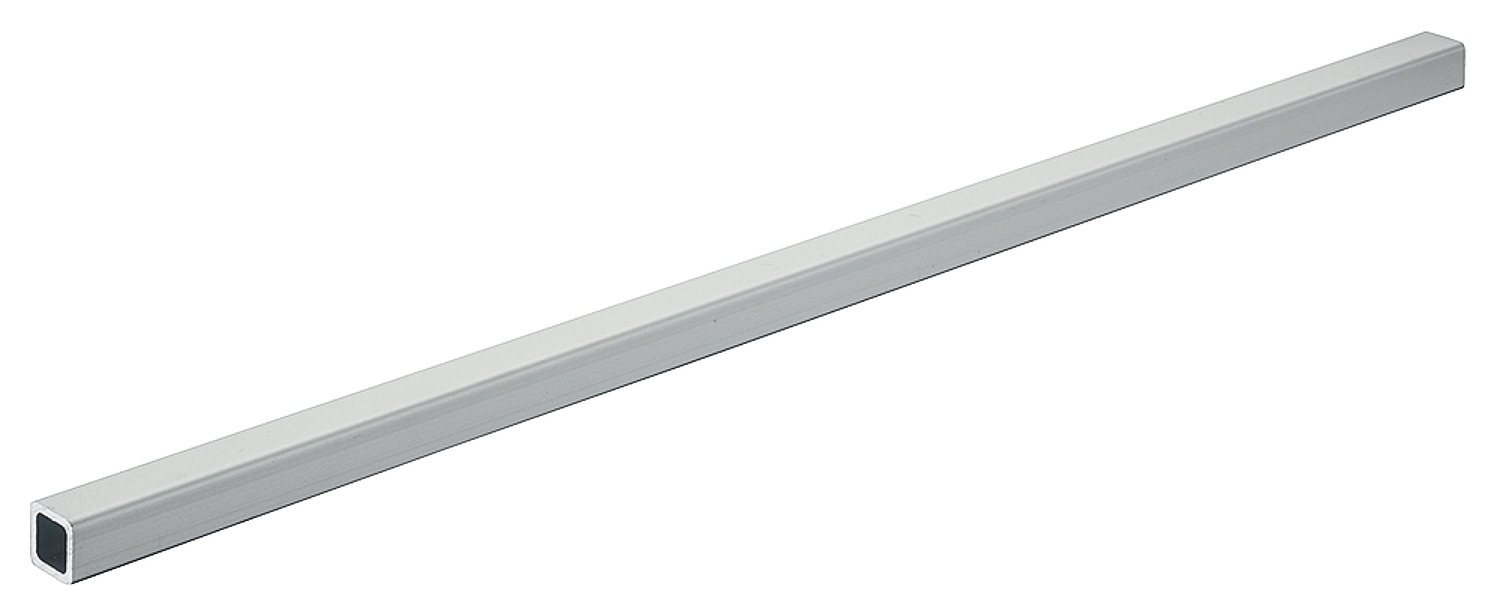

Hafele 372.33.694 Cross Bar, for Free Swing For cabinet width: 900 mm, length: 774 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 372.33.694

  Product Title: Cross Bar, for Free Swing, For connecting the respective fitting parts, For cabinet width: 900 mm, length: 774 mm

  Category: Cross Bar, for Free Swing, For connecting the respective fitting parts

  Item Details …

  - Can be cut to size

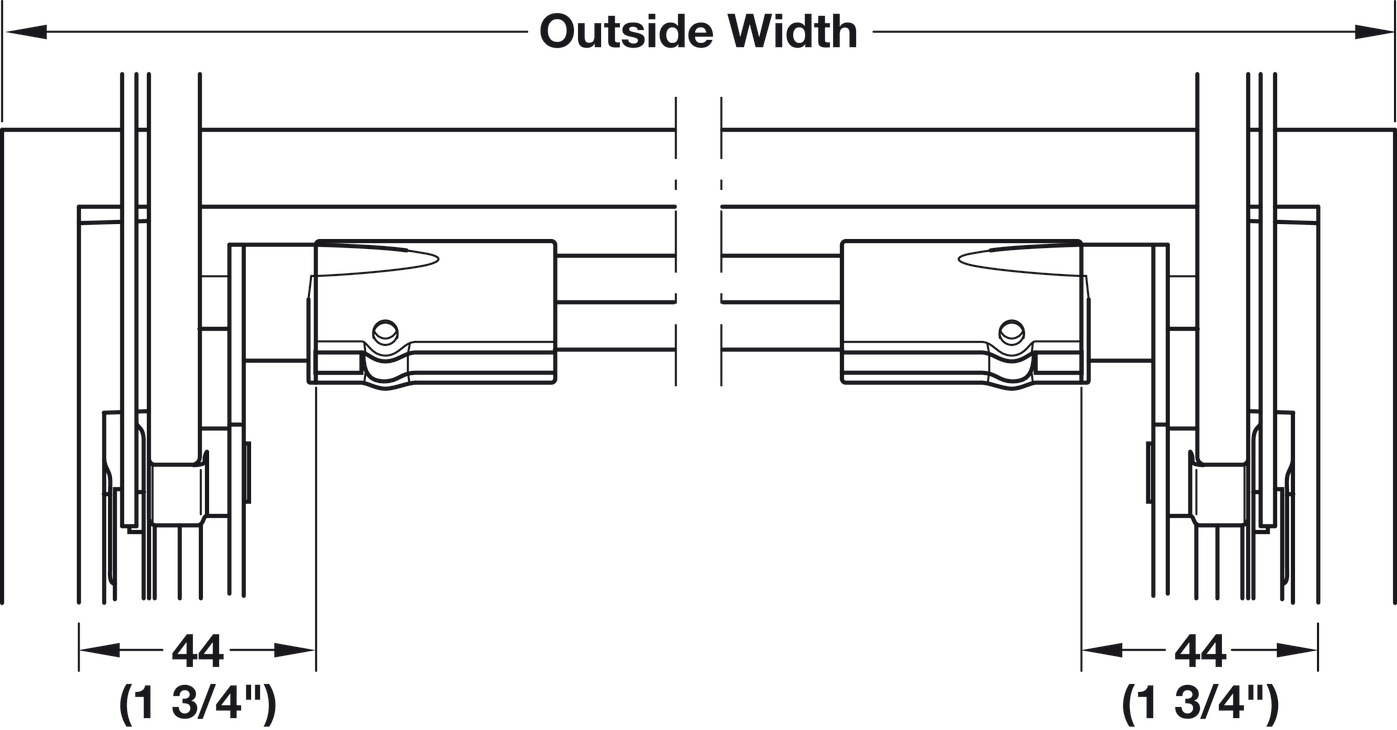

  - Cutting dimension = internal cabinet width - 88 mm (3 7/16�)

  - Area of application : For synchronizing both fitting parts

  - Version : Can be shortened

  - Suitable for : Free swing/up

  - Material : Aluminum

  - Color/finish : anodized


  Additional Information …

  Cabinet width mentioned in the Outside cabinet widthCross bar is prepared for side panel thicknesses 16–19 mm (5/8�-3/4�).

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.126



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.132-9.145.pdf



  Please contact us for more information about this product

• Required Products & Optional Accessories

  Optional Accessories:



  • Front lift up fitting, Free swing
  • Parallel Lift-Up Front Fitting, Free Up
