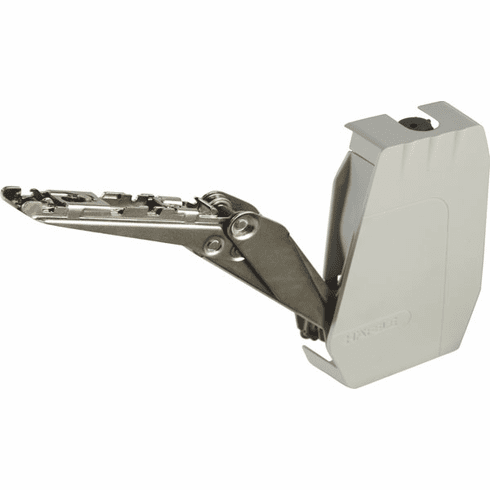

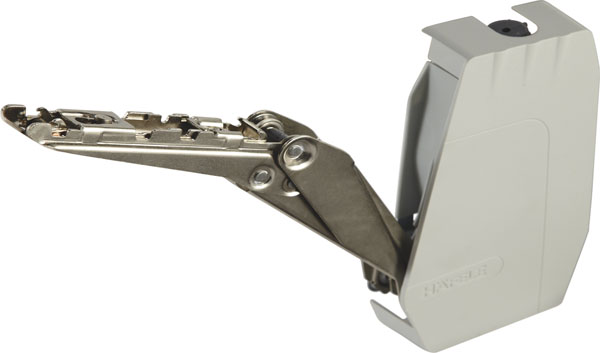

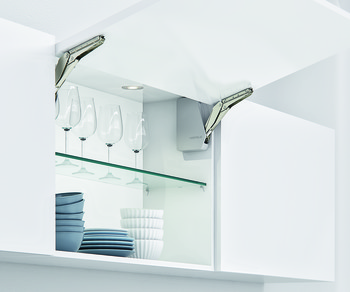

Hafele 372.91.321 Swing Up Fitting, Free Flap 1.7, Set For small, one-piece flaps made of wood or with aluminum frame, Model B

Product Information

• Description

  Manufacturer: Hafele
  Item: 372.91.321

  Product Title: Swing Up Fitting, Free Flap 1.7, Set, For small, one-piece flaps made of wood or with aluminum frame, Model B

  Category: Swing Up Fitting, Free Flap 1.7, Set, For small, one-piece flaps made of wood or with aluminum frame

  Item Details …

  - Extremely little space requirement

  - no additional hinge connection required

  - with integrated soft closing mechanism

  - Flap locks in any position

  - Area of application : for stay flap front panels with or without handle (Push-to-Open), for smaller, one-piece flaps made from wood or glass or flaps with aluminium frame

  - Material : Steel

  - Color/finish : Fitting: Nickel plated

  - Color/Finish cover : Grey

  - Lid material : Wood, Glass, Aluminum frame

  - Flap type : one-piece

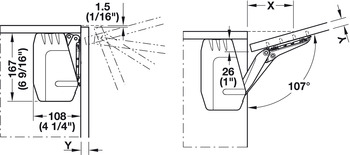

  - Opening angle : 107 °

  - For cabinet height : 200?–?450 mm

  - Adjustment facility : Height/side/tilting angle of front ±1.5 mm, holding power

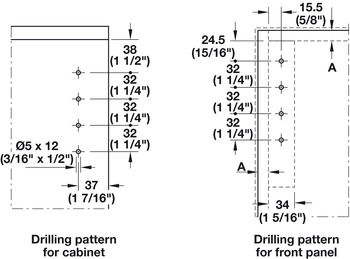

  - Installation : Fitting for screw fixing with pre-mounted Euro screwsfront panel without tools (clip system) onto pre-mounted screw-on brackets

  - Supplied with:

  - 1 stay flap fitting set (1 piece each left/right, 2 front fixing brackets for wooden flaps or flaps with wide aluminium frame from frame width 45 mm, installation instructions and paper drilling template)

  - 1 set of gray cover caps


  Additional Information …

  The choice of stay flap fitting and push catch for handle-free front panels depends on the cabinet height and the flap weight. For model selection see sample measurements tables.
