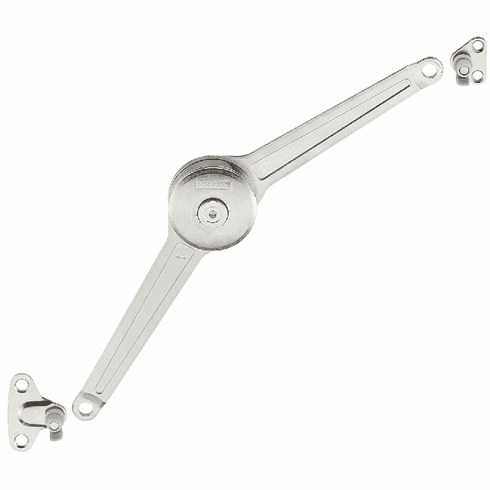

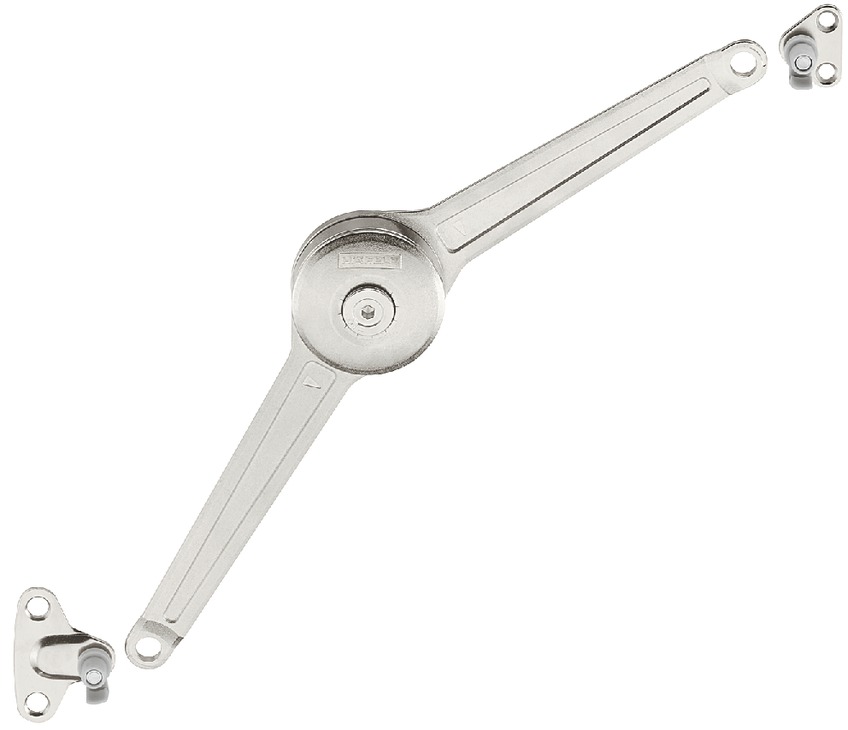

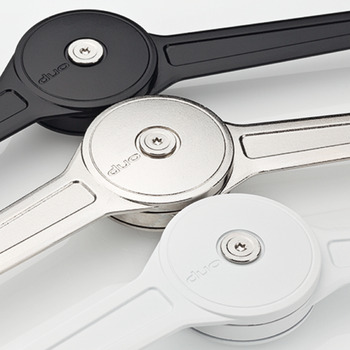

Hafele 373.66.642 Duo forte lid or flap stay set, nickel, 37mm edge distance, aluminum doors

Product Information

• Description

  Manufacturer: Hafele
  Item: 373.66.642

  Product Title: Swing-Up Fitting, Duo Forte Complete Set for Wood & Aluminum, Individual Fitting (Order Cabinet and Door Brackets Separately), Nickel-Plated Finish; Sheet Metal Screws

  Category: Swing-Up Fitting, Duo Forte Complete Set for Wood & Aluminum, Individual Fitting (Order Cabinet and Door Brackets Separately)

  Item Details …

  - Adjusting the arms (overshear) turns the lid stay into a flap stay

  - Little space requirement on cabinet

  - Wear-resistant friction coupling with large adjusting range

  - Lid stay – opening angle 90°

  - Flap stay – opening angle 90°

  - Separate catch required

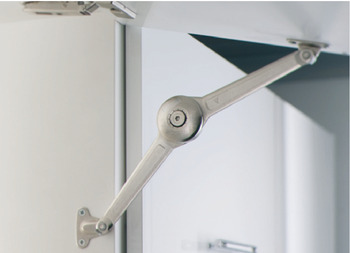

  - Installation as lid stay

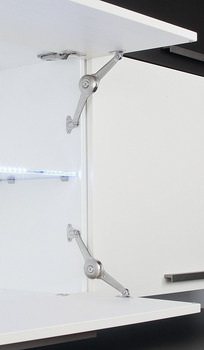

  - Installation as flap stay (use 2 fittings)

  - Version : Complete set

  - Flap type : one-piece

  - Opening angle : 75?–?110 °

  - For cabinet height : 250?–?700 mm

  - For lid weight : ?12 kg

  - Mounting : right and left hand use

  - Edge distance : 37.00 mm

  - Adjustment facility : Holding power

  - Supplied with:

  - 1 piece lid stay, 1 piece mounting bracket for cabinet and 1 piece screw-on bracket for flap


  Additional Information …

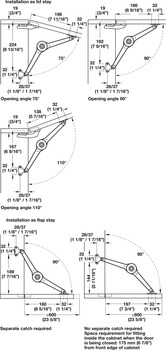

  The following mounting dimensions and sample measurements tables for this kind of application must be adhered to
