Hafele 373.69.312 Swing-Up Fitting, Maxi, Complete Set Model D, nickel

Product Information

• Description

  Manufacturer: Hafele
  Item: 373.69.312

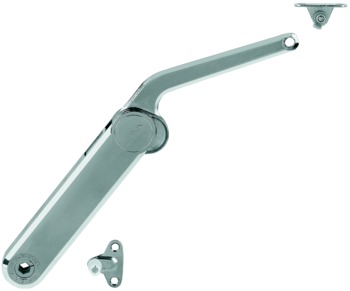

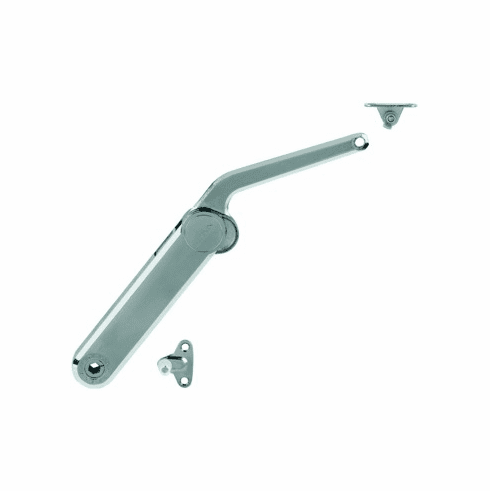

  Product Title: Swing-Up Fitting, Maxi, Complete Set, For wooden or glass flaps or flaps with aluminum frame, Model D, nickel

  Category: Swing-Up Fitting, Maxi, Complete Set, For wooden or glass flaps or flaps with aluminum frame

  Item Details …

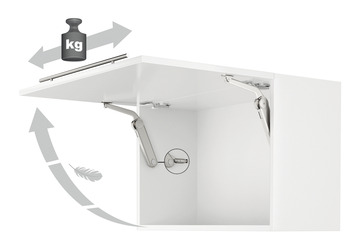

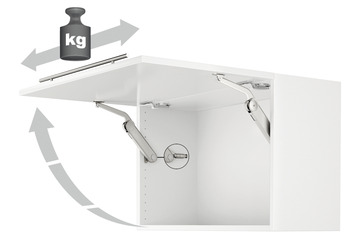

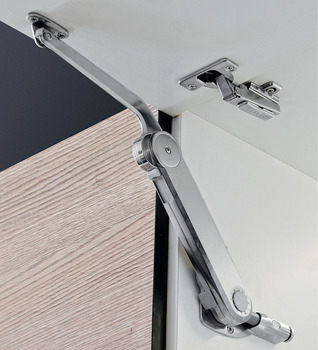

  - MAXImal talent: By varying the mounting points with just one fitting, many applications such as front panels without handles or effortless opening of even large and heavy flaps up to 50 kg can be realised (depending on flap height and mounting situation)

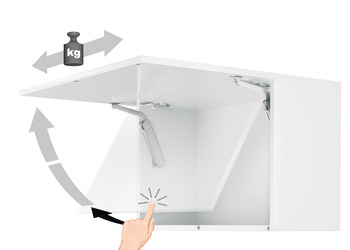

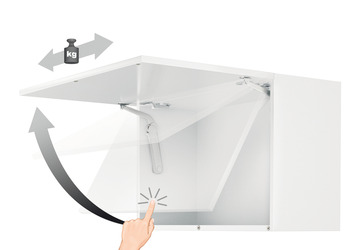

  - Multi-position stop function: The fitting can be adjusted so that the flap stops in any position.

  - separate soft closing mechanism available as accessory

  - can also be used in combination with Häfele Metalla 510 Push self-opening concealed hinges or concealed hinges with integrated soft-closing mechanism (trial mounting required)

  - Version : Complete set

  - Color/finish : Nickel plated

  - For cabinet height : 300?–?1,000 mm

  - For lid weight : ?27.3 kg

  - Mounting : right and left hand use

  - Edge distance : 37.00 mm

  - Adjustment facility : height adjustment ±2 mm, side adjustment +3/-1 mm, tilting angle ±1.5 mm and adjustment facility for holding power with SW10 hex key

  - Installation : Without tools (clip system)

  - Order reference

  -

  - Use two Maxi fittings for flap widths from 600 mm (23 5/8”) and above.

  -

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Maxi Stay flap fitting installation instructions

  Installation instructions for Maxi stay flap fitting

  LGA quality certificate

  Information on application options – English



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.122-9.130.pdf

  Hafele 373.69.312, 373-69-312, 37369312, 373.69


  Specifications/Hafele Catalog - Page# FC9.127: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Hex Key, SW10 for Free Flap H 1.5
  • Maxi Cabinet Bracket, Nickel Plated
  • DUO/MAXI Door Bracket, for Doors Made of Wood or with Aluminum Frame
  • Soft Closing Mechanism, with Adjustable Dampening
  • Euro screw, Häfele, Varianta, countersunk head, Steel
  • Concealed Hinge, Salice PUSH, 110° Opening Angle, Self Opening, Full Overlay
