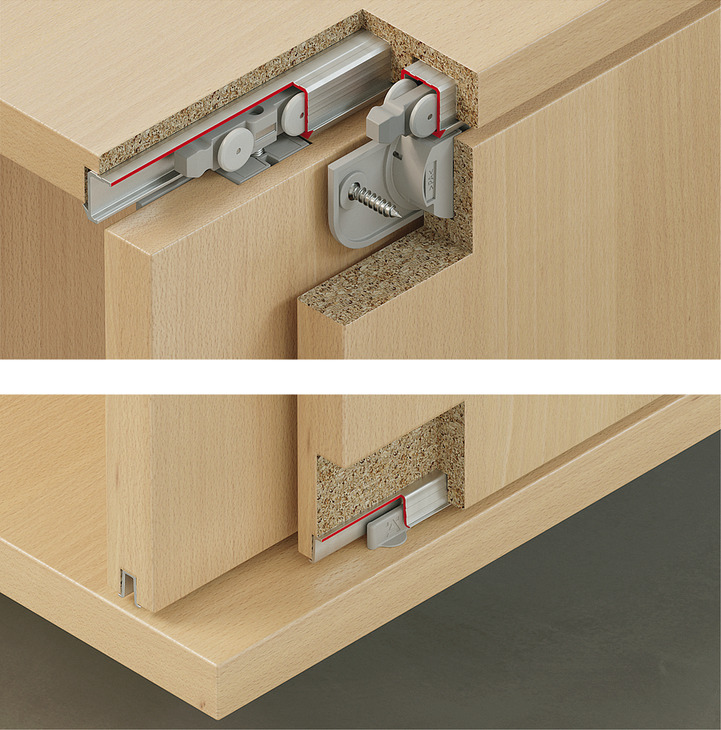

Hafele 402.33.019 Sliding Door Hardware, Slido Classic 20 IF C for small doors, for wooden sliding doors, for door weight up to 20 kg, for 2 doors, with single soft closing on each door

Product Information

• Description

  Manufacturer: Hafele
  Item: 402.33.019

  Product Title: Sliding Door Hardware, Slido F-Line21 20C, set, for small doors, for wooden sliding doors, for door weight up to 20 kg, for 2 doors, with single soft closing on each door

  Category: Sliding Door Hardware, Slido F-Line21 20C, set, for small doors, for wooden sliding doors, for door weight up to 20 kg

  Item Details …

  - Ideal for small doors

  - Number of doors : 2.00

  - For door thickness : 16?–?19 mm

  - For door weight : 13?–?20 kg

  - Running position : Top

  - Number of rollers : 4.00

  - Height adjustment : ±2 mm

  - Running gear guided by : Friction bearing

  - For door material : wood

  - For door thickness max. : 3/4"

  - Door width max. : Max: 4' 1 3/16"

  - For door thickness min. : 5/8"

  - Door weight max. : 44 lbs.

  - Height adjustable :

  - Length (inch) : 2' 1 19/32"

  - Cabinet version : with small door wings

  - Set : Set without tracks

  - Area of application : For 2 doors

  - Note on door weight : We recommend that you adhere to the minimum door weight.

  - For door height : ?1,400 mm

  - Door stopper : Top clip-in door stopper or as soft and self closing mechanism, for sliding into running track

  - Material/finish : Housing: PlasticRunning gear: PlasticGuide: PlasticRollers: PlasticAxis: Steel

  - Adjustment facility : Height adjustment: ±2 mm, ±2 mm on running gear using adjusting wheel

  - Door adjustment via : adjusting wheel

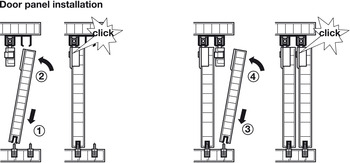

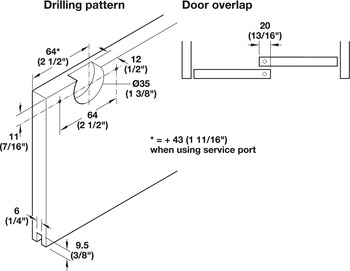

  - Installation : Guide for press fitting into a drill hole, Screw-on housing, Running gear without tools (quick fixing system)

  - Type of opening : linear

  - Number of doors per system max. : 1 to 3

  - Order reference

  - Please order running and guide tracks separately.

  - Supplied with:

  - 4 running gears (2 with soft and self closing mechanism)

  - 4 door stoppers (2 with clip-in door stopper, 2 for soft and self closing mechanism)

  - 1 door follower

  - 2 guides

  - 1 mounting aid

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Slido F-Line21 20/40C Mounting Instructions

  LGA quality certificate for Slido F-Line21 20 A/B/C/D/F/H.pdf

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.19



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Single running track, For Slido F-Line21 (choose one):


  • for Slido Classic IF/MF/VF, Slido Design IF, mill, 2.5 m length for Slido Classic IF/MF/VF, Slido Design IF, mill, 3.5 m length

    402.33.642 402.33.643

    Click to order Click to order



  Double Top Running Track, Top, for press fitting and glue fixing (choose one):


  • For Slido F-Line21, 8' 2 7/16"

    402.33.652

    Click to order



  Single Top Running Track, For Slido F-Line21 (choose one):


  • for Häfele Slido F-Line21, 8' 2 7/16" for Häfele Slido F-Line21, silver colored anodized, length: 3,500 mm, aluminum

    402.30.642 402.30.643

    Click to order Click to order



  Double Top Running Track, For Slido F-Line21 (choose one):


  • for Slido Classic VF, 8' 2 7/16"

    402.30.652

    Click to order



  Lower Guide Channel, Bottom, with harpoon-type flanges, for press fitting and glue fixing (choose one):


  • for Slido Classic IF/MF/VF, Slido Design IF, Length: 8' 2 7/16" for Slido Classic IF/MF/VF, Slido Design IF, Length: 11’ 5 13/16”

    402.30.802 402.30.803

    Click to order Click to order



  Optional Accessories:



  • Flathead screw, Slido Classic
