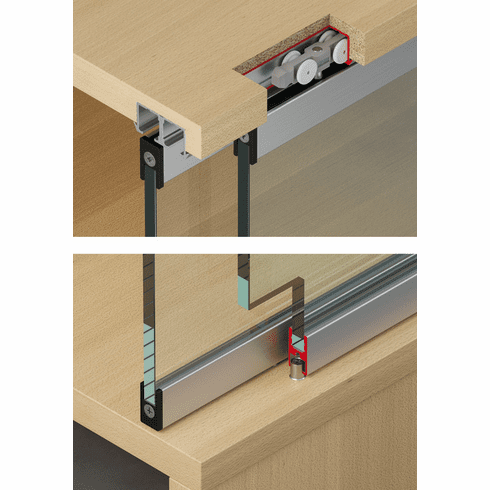

Hafele 402.33.039 Slido F-Line21 12D Fitting Set, for 2 doors, 4 soft closing mechansims

Product Information

• Description

  Manufacturer: Hafele
  Item: 402.33.039

  Product Title: Sliding Door Hardware, Slido F-Line21 12D/20D, Set, Infront, for 2 doors, with soft and self closing mechanism on both sides, 12 kg

  Category: Sliding Door Hardware, Slido F-Line21 12D/20D, Set,

  Item Details …

  - Area of application : For 2 doors

  - Door stopper : With soft closing mechanism on both sides

  - Adjustment facility : ±2 mm on running gear using hexagonal nut

  - Installation reference : Pitch length of running gears must be min. 245 mm with soft closing mechanism on one side, min. 425 mm with soft closing mechanism on both sides.

  - Order reference

  - Please order running and guide tracks separately.

  - Please order the following sets for cabinets with 3 doors: 1 set for 1 door and 1 set for 2 doors.

  - Supplied with:

  - 4 running gears with soft and self closing mechanism

  - 4 door stoppers for soft and self closing mechanism

  - 1 door follower

  - 2 sets of runners, cover caps and mounting aid


  Additional Information …

  Pitch length of running gears must be min. 245 mm with soft closing mechanism on one side, min. 425 mm with soft closing mechanism on both sides.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Slido F-Line21 12/20D Mounting Instructions

  LGA quality certificate for Slido F-Line21 12 C/D.pdf

  Häfele Slido F-Line21 12D / 20D|Installation

  Slido F-Line21 12d/20D Installation and Adjustment Video
