Hafele 403.20.001 Sliding Door Fitting, EKU Libra 20 H, Set For vertical wooden sliding doors, for door weights up to 20 kg, for door heights up to 1,000 mm, For 1 door

Product Information

• Description

  Manufacturer: Hafele
  Item: 403.20.001

  Product Title: Sliding Door Fitting, Hawa Libra 20 H IF/VF, set, For vertical wooden sliding doors, for door weights up to 20 kg, for door heights up to 1,000 mm, For 1 door

  Category: Sliding Door Fitting, Hawa Libra 20 H IF/VF, set, For vertical wooden sliding doors, for door weights up to 20 kg, for door heights up to 1,000 mm, For 1 door

  Item Details …

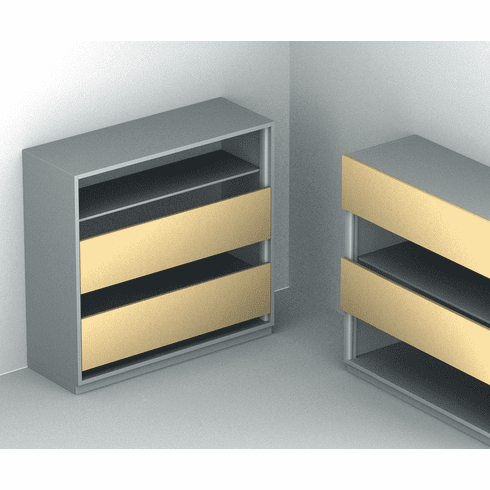

  - Independent vertical sliding door system for wood doors

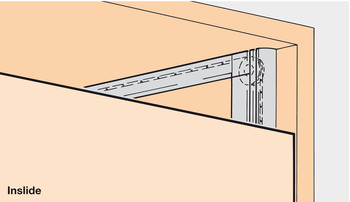

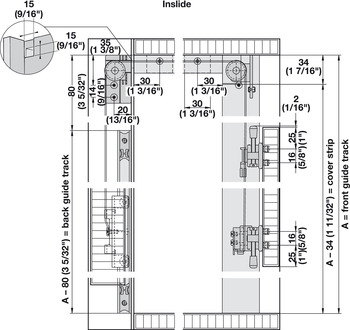

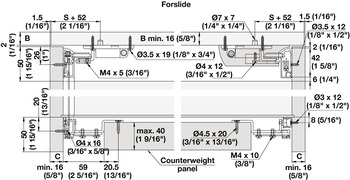

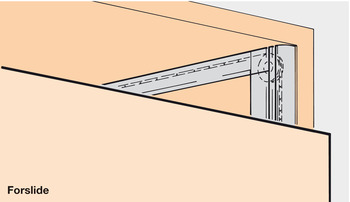

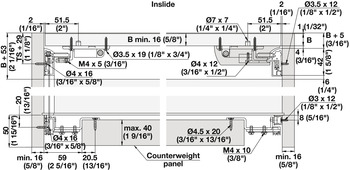

  - For inlay or overlay doors

  - Number of doors : 1.00

  - For door thickness : ?16 mm

  - For door width : ?1,600 mm

  - For door weight : ?20 kg

  - Running position : Bottom, lateral, top

  - Number of rollers : 1.00

  - For side panel thickness : min 16 mm

  - For door material : wood

  - Door width max. : Max. 63"

  - For door thickness min. : 5/8"

  - Door weight max. : 44 lbs

  - Side panel thickness min. : 5/8"

  - Set : Set without tracks

  - Area of application : For door weights up to 20 kg (44 lbs.), for 1 door

  - For door height : ?1,000 mm

  - Door stopper : Top and bottom stopper, for sliding into single guide track

  - Material/finish : Rollers: Plastic

  - Installation : Running gear and guide for screw fixing

  - Counterweight : The counterweight must correspond with the door weight, and the height must be smaller than the door height

  - Type of opening : linear

  - Number of doors per system max. : 1 to 2
