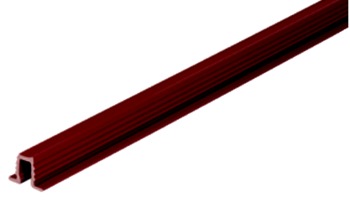

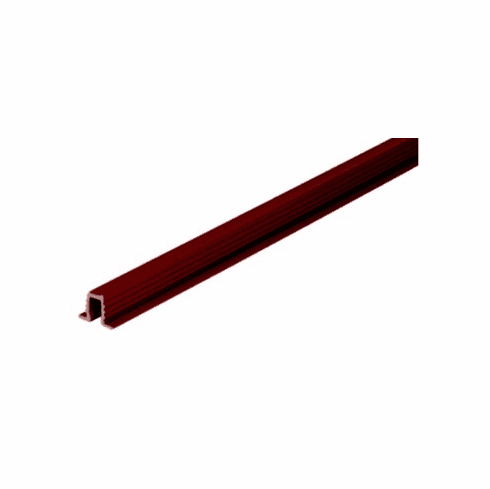

Hafele 404.14.313 Single Guide Track, for Top and Bottom of Cabinet black, length: 3,000 mm
, 40414313, 404-14-313 "Pin It")
Product Information
Description
Manufacturer: Hafele
Item: 404.14.313
Product Title: Single Guide Track, for Top and Bottom of Cabinet, for Slido F-Line12, black, length: 3,000 mm
Category: Single Guide Track, for Top and Bottom of Cabinet, for Slido F-Line12
Item Details …

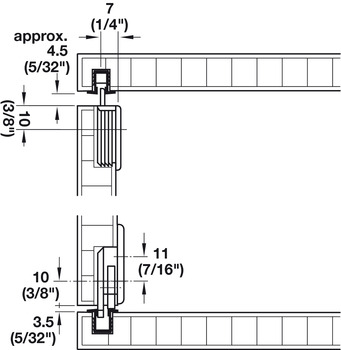

- Guide track is designed to be used both at the top and bottom of the cabinet
- Fittings from combinations for sliding doors with upper and lower guides
- Product type : Single Guide Track

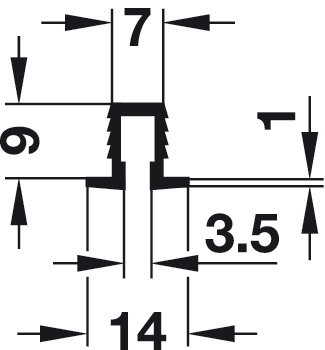

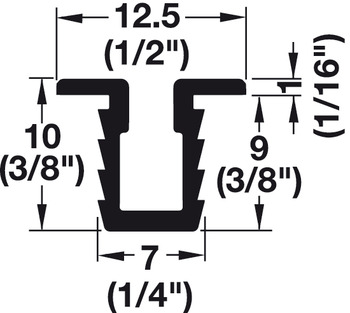

- Dim. (W x H) : 12 x 10 mm
- For door weight : ?15 kg
- Door weight max. : 33 lbs.
- Area of application : For top and bottom of cabinet
- Track version : Single
- Suitable for : Häfele Slido F-Line
- Position : top, bottom
- Material : Plastic
- For door thickness : ?12 mm

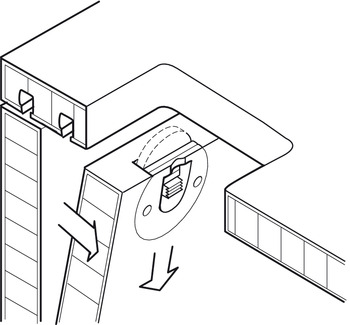

- Installation : For press fitting and gluing into groove. Includes flanged edges and barbed shoulders.Data Sheet
