Product Information
Description
Manufacturer: Hafele
Item: 405.71.001

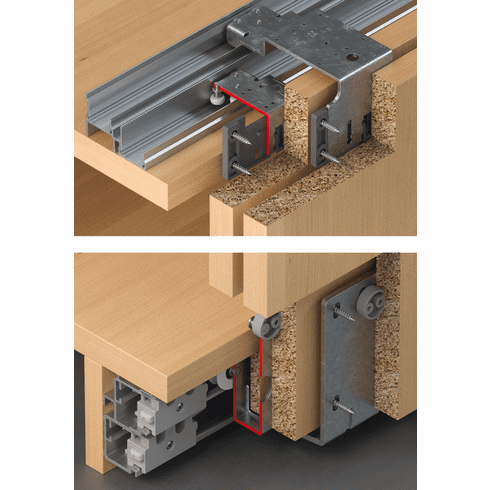

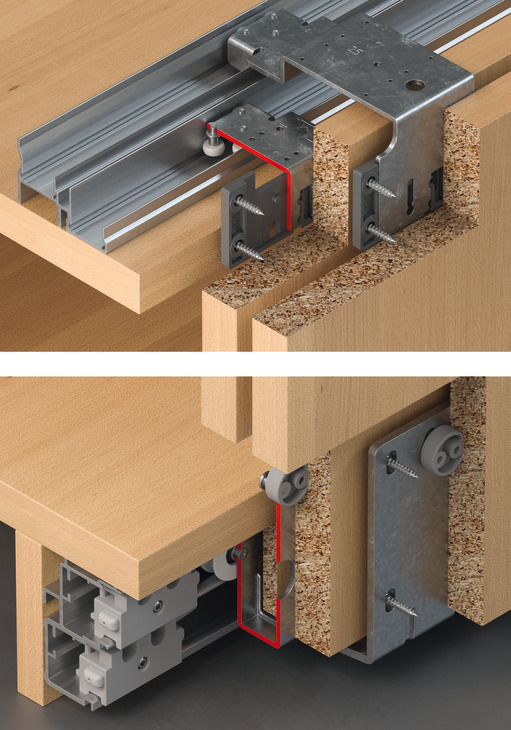

Product Title: Sliding Door Hardware, Hawa Combino 65 H VF ul, Set, For bottom running wooden doors, for door weights up to 65Â kg, for door heights up to 2600Â mm, For 3 doors
Category: ,
Item Details …
- Area of application : For 3 doors
- Door stopper : Bottom clip-in door stopper or soft and self closing mechanism, for sliding into running track
- Adjustment facility : Height +4/-2 mm on running gear using eccentric screw
- Installation reference : before installing double top guide track: Insert top door stoppers
- Order reference
- Please order running track, guide track and soft closing mechanism separately.
- Supplied with:
- 6 running gears
- 8 door stoppers (2 with clip-in door stopper/6 stoppers)
- 6 guides
- 9 clip panels
Additional Information …
before installing double top guide track: Insert top door stoppersData Sheet
Product Resources
Required Products & Optional Accessories
Optional Accessories:- Guide, For Hawa Combino 65 H VF soft and self closing mechanism, 65 H MF
