Hafele 405.71.003 Hawa Combino 65 H MS ol Fitting Set, door thickness 25 mm, for 3 doors

Product Information

• Description

  Manufacturer: Hafele
  Item: 405.71.003

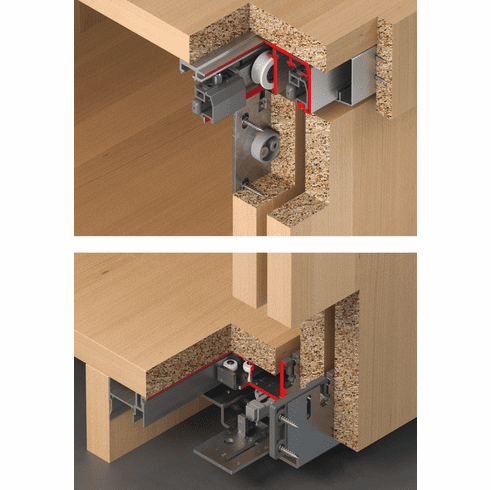

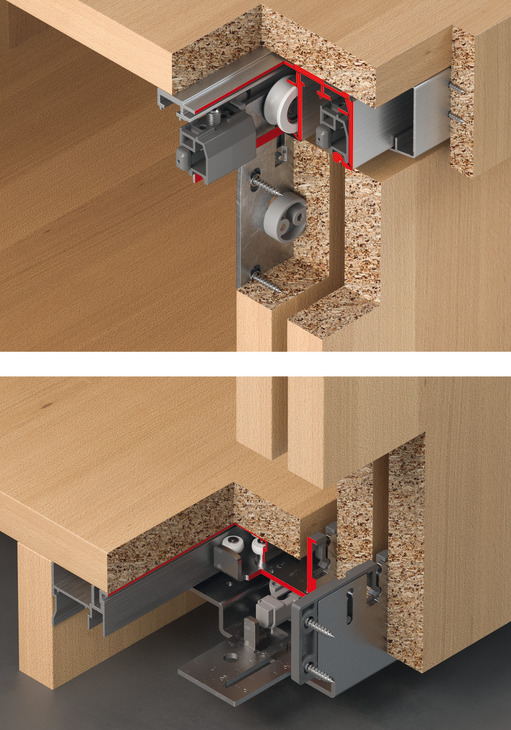

  Product Title: Sliding Door Hardware, Hawa Combino 65 H MF, Set, For bottom running wooden doors, for door weights up to 65 kg, for door heights up to 2600 mm, Mixfront, for 3 doors, door thickness 25 mm

  Category: Sliding Door Hardware, Hawa Combino 65 H MF, Set, For bottom running wooden doors, for door weights up to 65 kg, for door heights up to 2600 mm, Mixfront, for 3 doors, door thickness 25 mm

  Item Details …

  - Version : With clip-in door stopper

  - Door width max. : Max. 52 3/4”

  - For door thickness min. : 31/32"

  - Door weight max. : 143 lbs.

  - Length (inch) : 2' 1 19/32"

  - Area of application : For 3 doors

  - Door stopper : Top clip-in door stopper and soft and self closing mechanism

  - Adjustment facility : +4/-2 mm eccentric screw on running gear

  - Order reference

  - Please order running and guide track separately.

  - Supplied with:

  - 6 running gears

  - 6 guides

  - 8 door leaf stoppers with clip-in door stopper

  - 4 track end pieces

  - Mounting material

• Data Sheet

  Detailed Data Sheet

• Product Resources

  COMBINO 65 H MF ol Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.45



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Track set, For Hawa Combino 65 H MF (choose one):


  • length: 4.0 mm

    405.70.724

    Click to order



  Optional Accessories:



  • Soft and self closing mechanism, Hawa Combino 65 H MF/IF
  • Guide, For Hawa Combino 65 H VF soft and self closing mechanism, 65 H MF
  • Fixing profile, for wooden panel, pre-drilled
