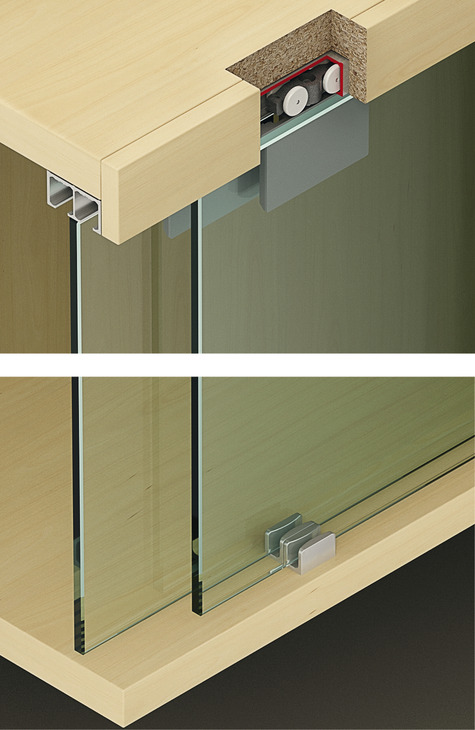

Hafele 405.82.226 Sliding Door Hardware, EKU Clipo 16 GK IF, set With concealed fixing, for door weights up to 16 kg, Infront, for 2 doors
Product Information
Description
Hafele 405.82.226 Sliding Door Hardware, EKU Clipo 16 GK IF, set
With concealed fixing, for door weights up to 16 kg, Infront, for 2 doors
Additional items required to complete installation:
Double Top Track, Top, for screw fixing
Double Top Track, Top, for screw fixingFor 2 doors Version : With clip-in door stopper Supplied with : 4 running gears
2 door stoppers with clip-in door stopper
2 floor guides
1 door followerApplication : With concealed fixing Door weight : ‰¤16 kg Door height : (55 1/8") 1400 mm Door width : (39 3/8") 1000 mm Door stopper : Top clip-in door stopper, for sliding into single running track For glass thickness : 6 mm Material : Plastic
zinc alloyRunning gear : Top running, 4 rollers Running gear guided by : Friction bearing mounted roller: Plastic, axle: Steel Adjustment : Height +2/-1 mm Installation : Running gear without tools (quick fixing system), guide for screw fixing, without glass preparation (for glue fixing) Supplied with : 4 Running gears
2 door stoppers with clip-in door stopper
2 floor guides
1 door follower
Optional items:
Hospa chipboard screws with countersunk head 2.5 mmCatalog Pages
