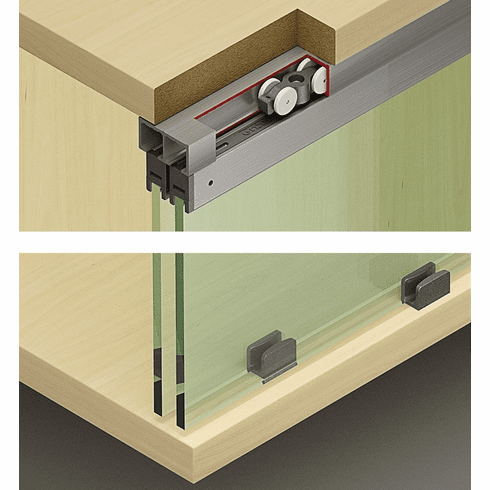

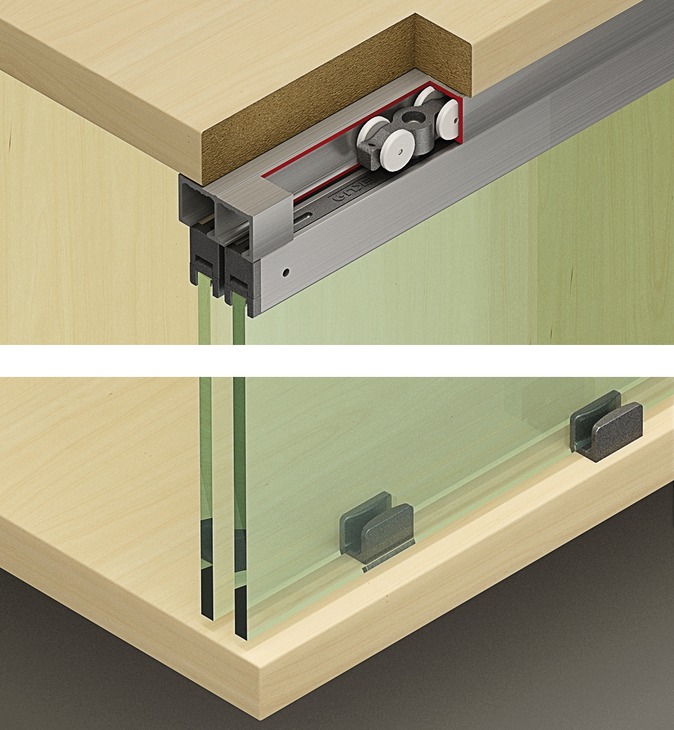

Hafele 405.82.290 Sliding Door Hardware, EKU Clipo 16 GPK IS, set GPK, for 2 sliding doors

Product Information

• Description

  Manufacturer: Hafele
  Item: 405.82.290

  Product Title: Sliding Door Hardware, Hawa Clipo 16 GPK IF, set, For 2 Doors, GPK - glass fixing profile is not required on the bottom of the door

  Category: Sliding Door Hardware, Hawa Clipo 16 GPK IF, set, For 2 Doors

  Item Details …

  - No glass drilling

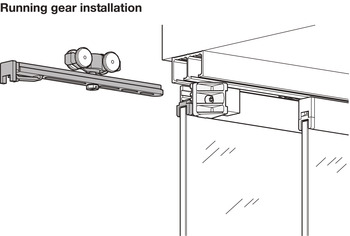

  - Clip-on running gear provides quick installation

  - For bypassing, frameless glass doors

  - Top hung system allows for no track or groove to be placed in the bottom of the cabinet

  - Optional soft closing available to prevent door slam

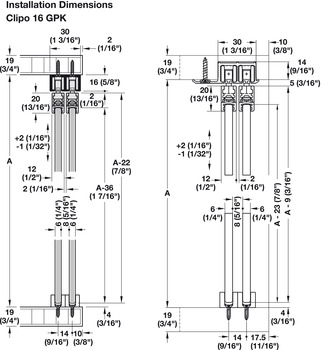

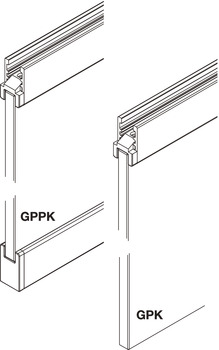

  - GPK Version: Glass fixing profile is not required on the bottom of the door. Featured in related products below.

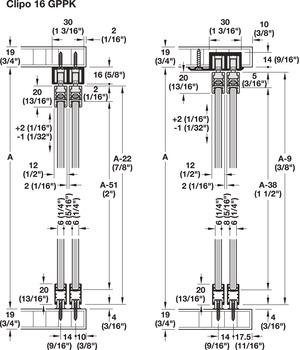

  - GPPK Version: Glass fixing profile required on top and bottom of door

  - Number of doors : 2.00

  - Soft closing mechanism : with clip-in door stopper

  - For glass thickness : 6 mm

  - For door width : ?1,000 mm

  - For door weight : ?16 kg

  - Cabinet version : with sliding doors without glass drilling

  - Set : Set without tracks

  - Area of application : For 2 doors

  - For door height : ?1,400 mm

  - Door stopper : Top clip-in door stopper

  - Material/finish : PlasticRollers: Plastic

  - Running position : Top

  - Number of rollers : 2.00

  - Running gear guided by : Friction bearing

  - Adjustment facility : Height adjustment: -1?–?2 mm, Height (+/- 1/16") +2/-1 mm

  - Installation : Screw-on guide, Running gear without tools (quick fixing system)

  - Door processing : Without glass preparation

  - Running position : Top

  - Type of opening : linear

  - Number of doors per system max. : 2

  - Order reference

  - Please order running tracks, guide tracks and glass fixing profiles (GPK: top, GPPK: top and bottom) separately.

  - Please order soft closing mechanism set separately.

  - Supplied with:

  - 4 Running gears

  - 4 locking component

  - 2 floor guides

  - 1 door follower

  - 2 door stoppers with clip-in door stopper

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Clipo 16 GPK/GPPK IF Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.81



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.72-7.73.pdf

  Hafele 405.82.290, 405-82-290, 40582290, 405.82


  Specifications/Hafele Catalog - Page# FC7.99: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Single Top Track, Hawa Clipo (choose one):


  • Pre-drilled for Screw-mounting, Aluminum, 8' 2 7/16" Pre-drilled for Screw-mounting, Aluminum, Aluminum, 11' 5 3/16"

    405.87.082 405.87.083

    Click to order Click to order



  Single running track, Hawa Clipo (choose one):


  • Mounts with Rotating Fasteners, Aluminum, 8' 2 7/16" Not suitable for hardwood and MDF, Aluminum, 11' 5 3/16"

    405.87.092 405.87.093

    Click to order Click to order



  Sliding Door Hardware, Top, for screw fixing (choose one):


  • for Hawa Clipo IF, Surface Mounted for Screw Mounting for Hawa Clipo IF, Length: 3,500 mm

    405.90.962 405.90.963

    Click to order Click to order



  Double Top Track, Top, for screw fixing (choose one):


  • for Hawa Clipo IF, aluminum, bright, length: 2,500 mm for Hawa Clipo IF, aluminum, bright, length: 3,500 mm

    405.90.972 405.90.973

    Click to order Click to order



  Glass Fixing Profile, Top and Bottom, for Glue Fixing (choose one):


  • For Hawa Clipo IF, Length: 2500 mm

    405.89.932

    Click to order



  Optional Accessories:



  • Soft Close Mechanism, Hawa Clipo IF
  • Service Port, Hawa Clipo
  • Service Port, Hawa Clipo
  • Knob, For Sliding Glass Doors
