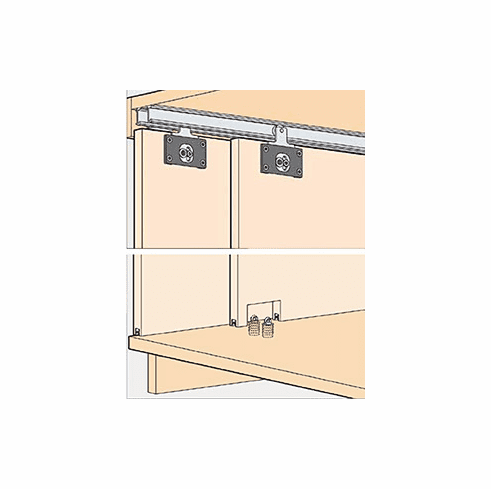

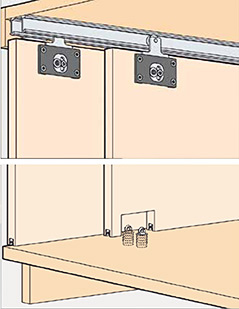

Hafele 405.91.723 Sliding Door Hardware, EKU Combino 35 H Inslide, set For Top Hung Wood Doors, for Door Heights up to 7' 2 5/8", For 2 Doors; Up to 77 lbs

Product Information

• Description

  Manufacturer: Hafele
  Item: 405.91.723

  Product Title: Sliding Door Hardware, Hawa Combino 35 IF, set, For Top Hung Wood Doors, for Door Heights up to 7' 2 5/8", For 2 Doors; Up to 77 lbs

  Category: Sliding Door Hardware, HAWA Combino 20/35 IF, set, For Top Hung Wood Doors, for Door Heights up to 7' 2 5/8"

  Item Details �

  - Tool-less door mounting via spring guide bolt

  - Elegant clip-on aluminum fascia

  - Recommended door overlay: 30 mm (1 3/16�)

  - Tool-less door mounting via spring guide bolt

  - Elegant clip-on aluminum fascia

  - Soft closing mechanism : with clip-in door stopper

  - For door thickness : 19 mm

  - For door width : ?1,200 mm

  - Set : Set without tracks

  - Area of application : For 2 doors

  - For door height : ?2,200 mm

  - Door stopper : Top clip-in door stopper, for sliding into double or single running track

  - Material/finish : Running gear: SteelGuide: PlasticRollers: PlasticAxis: Steel

  - Running position : Top

  - Running gear guided by : Ball bearing

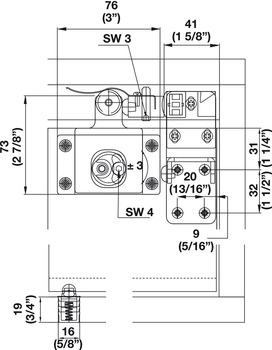

  - Adjustment facility : Height adjustment: �3 mm, �3 mm on running gear using eccentric screw

  - Door adjustment via : eccentric screw

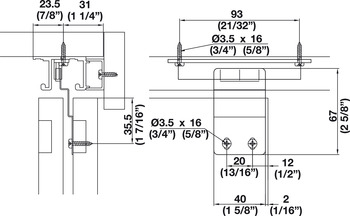

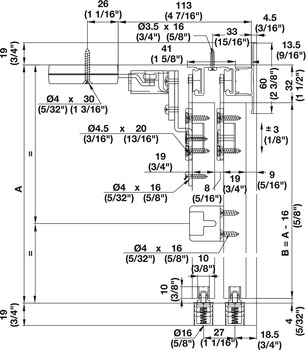

  - Installation : Guide for press fitting into a drill hole, Running gear for screw fixing, Backlash-free spring-loaded floor guide for press fixing

  - Running position : Top

  - Type of opening : linear

  - Number of doors per system max. : 2 to 3

  - Order reference

  - Please order running and guide track separately.

  - Supplied with:

  - Set Components Include:

  - Running gear

  - Mounting bracket

  - Track stopper with retainer

  - Track stopper

  - Guide

  - Buffer (2 different types)

  - Mounting screws

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  COMBINO 20 H IF Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page�7.37



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.34-7.35.pdf

  Hafele 405.91.723, 405-91-723, 40591723, 405.91


  Specifications/Hafele Catalog - Page# FC7.53: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Single Running Track, Hawa Combino 20 and 35 H IF (choose one):


  • for Hawa Combino IF/MF, Length: 8' 2 7/16" for Hawa Combino IF/MF, Length: 11' 5 13/16"

    406.30.967 406.30.976

    Click to order Click to order



  Double Running Track, Multihole (choose one):


  • for Hawa Combino IF/MF, Length: 8' 2 7/16" for Hawa Combino IF/MF, Length: 11' 5 13/16"

    406.31.964 406.31.973

    Click to order Click to order



  Bottom Guide Rail, for Hawa Combino/Clipo IF (choose one):


  • for Hawa Combino/Clipo IF, 2.5 m

    405.04.351

    Click to order



  Lower Guide Rail Channel, for Hawa Clipo 36 H IF (choose one):


  • 2.5 m 3.5 m

    406.73.803 406.73.804

    Click to order Click to order



  Optional Accessories:



  • Clip-on Fascia, For Hawa Combino 20/35 H IF
  • Clip-on Adapter for Wood Fascia, For screw fixing to panel and clip fixing to running track
  • Center Door Stopper, Hawa Combino 20 and 35 H Inslide
  • Soft and self closing mechanism, For Hawa Combino 20/35 VF/MF/IF
