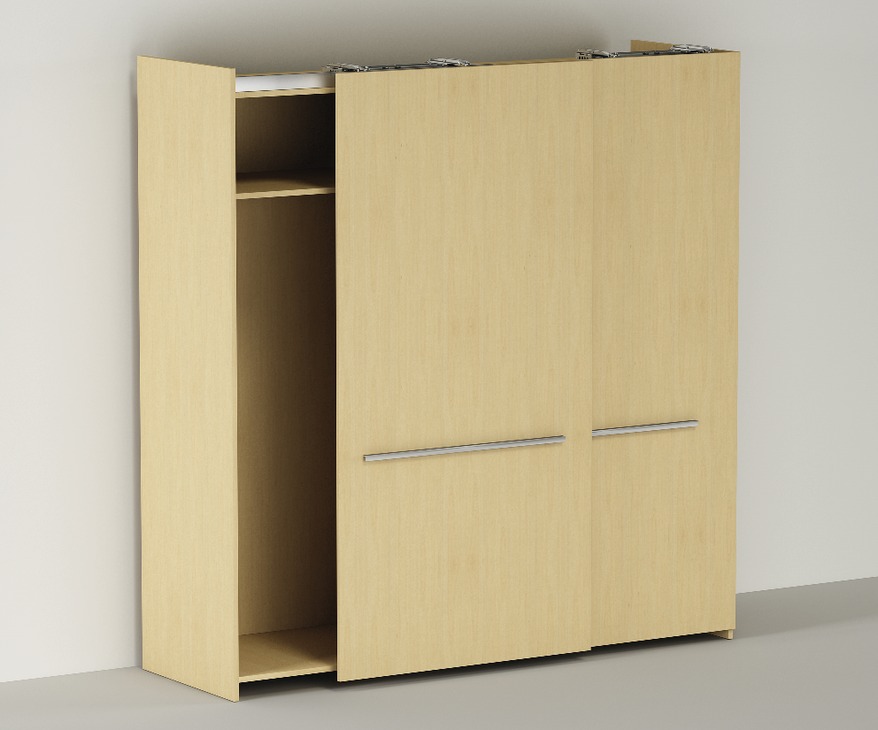

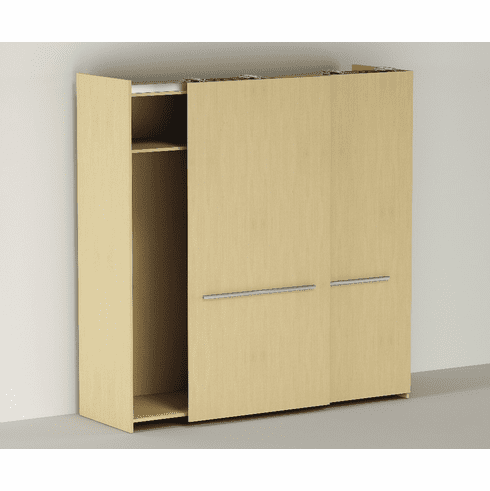

Hafele 406.02.615 Additional Tracks with Screw Holes, for EKU Frontino 40 For two coplanar wood sliding doors, for door weights up to 88 lbs, for door heights up to 2,200 mm, cabinet width: 2200 - 2400 mm (86 5/8" - 94 1/2"); 2.4 m length

Product Information

• Description

  Manufacturer: Hafele
  Item: 406.02.615

  Product Title: Additional Tracks with Screw Holes, for Hawa Frontino 40, For two coplanar wood sliding doors, for door weights up to 88 lbs, for door heights up to 2,200 mm, cabinet width: 2200 - 2400 mm (86 5/8" - 94 1/2"); 2.4 m length

  Category: Additional Tracks with Screw Holes, for Hawa Frontino 40, For two coplanar wood sliding doors, for door weights up to 88 lbs, for door heights up to 2,200 mm

  Item Details …

  - The door applications, both door should have the same dimensions. In order to have full access to fixed elements like drawers or open shelves, they must be the same size as the adjacent door.

  - Doors slide smoothly and quietly and sit flush when closed

  - Integrated soft closing to prevent door slam

  - Both doors need to be the same size for proper performance

  - Maximum handle height: 30 mm (1 3/16”)

  - Product type : Additional Tracks with Screw Holes

  - For door weight : ?40 kg

  - For door thickness min. : 3/4"

  - For door height (inches) : max. 92 15/16”

  - Suitable for : Hawa Frontino 40

  - For door width : 587?–?1,197 mm

  - For door height : ?2,380 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Frontino 40 Mounting Instructions

  Hawa Frontino 40 FB Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.62



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.60-7.61.pdf

  Hafele 406.02.615, 406-02-615, 40602615, 406.02


  Specifications/Hafele Catalog - Page# FC7.87: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs
