Hafele 407.58.006 Hawa Bifold 30 Set, Without upper track and lower guide channel, 6 Panel, Sliding Door Hardware

Product Information

• Description

  Manufacturer: Hafele
  Item: 407.58.006

  Product Title: Sliding Door Hardware, HAWA Bifold 30, set, Hawa Bifold 30 Set, Without upper track and lower guide channel, 6 Panel

  Category: Sliding Door Hardware, HAWA Bifold 30, set, Hawa Bifold 30 Set, Without upper track and lower guide channel

  Item Details …

  - Smooth and quiet operation

  - For door thickness min. : 1"

  - For door thickness max. : 1 3/4"

  - For door width (inches) : Max: 23 5/8"

  - Load bearing capacity : 2 door system max per leaf: 88 lbs.; 4 and 6 door systems max per door leaf: 66 lbs.

  - For door height : ?2,200 mm

  - For door thickness : 26?–?45 mm

  - For door weight : ?30 kg

  - For door width : ?600 mm

  - Material/finish : AluminiumSteelPlasticRubber

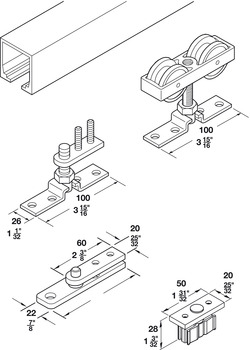

  - Supplied with:

  - Double roller running gear

  - Suspension plates

  - Upper and lower pivot

  - Butt hinges

  - Height adjusting pin

  - Stop bracket

  - Lower guide plate (for 4 or 6 panel sets)

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Hawa Bifold 30 Mounting Instructions

  TCH_Architectural_Hardware_2022|Page 1.187



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.156-1.157.pdf

  Hafele 407.58.006 HAWA-Bifold 30, set for 6 doors


  • Hardware > Hardware Accessories
  • Hardware,Hafele,500-3000
  • Brand: Hafele
  • Part#: 407.58.006
  • Condition: new

• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Lower Guide Channel, Pre-drilled (choose one):


  • for Hawa Telescopic, Junior, folding wall, Length: 2.5 m (8' 2 7/16") for Hawa Telescopic, Junior, folding wall, Length: 6.0 m (19' 8 1/4")

    941.00.925 941.00.960

    Click to order Click to order



  Upper Track, Pre-drilled (choose one):


  • for Hawa Symmetric, Telescopic, Junior, 1.4 m (4’ 7 1/8”) for Hawa Symmetric, Telescopic, Junior, 1.6 m (5’ 3”) for Hawa Symmetric, Telescopic, Junior, 1.8 m (5’ 10 7/8”) for Hawa Symmetric, Telescopic, Junior, 2 m (6’ 6 3/4”) for Hawa Symmetric, Telescopic, Junior, 2.2 m (7’ 2 5/8”) for Hawa Symmetric, Telescopic, Junior, 2.5 m (8’ 2 7/16”) for Hawa Symmetric, Telescopic, Junior, 3 m (9’ 10 1/8”) for Hawa Symmetric, Telescopic, Junior, 4 m (13’ 1 1/2”) for Hawa Symmetric, Telescopic, Junior, 6 m (19’ 8 1/4”)

    940.80.140 940.80.160 940.80.180 940.80.200 940.80.220 940.80.250 940.80.300 940.80.400 940.80.600

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Optional Accessories:



  • Butt Hinge, Steel, Galvanized
