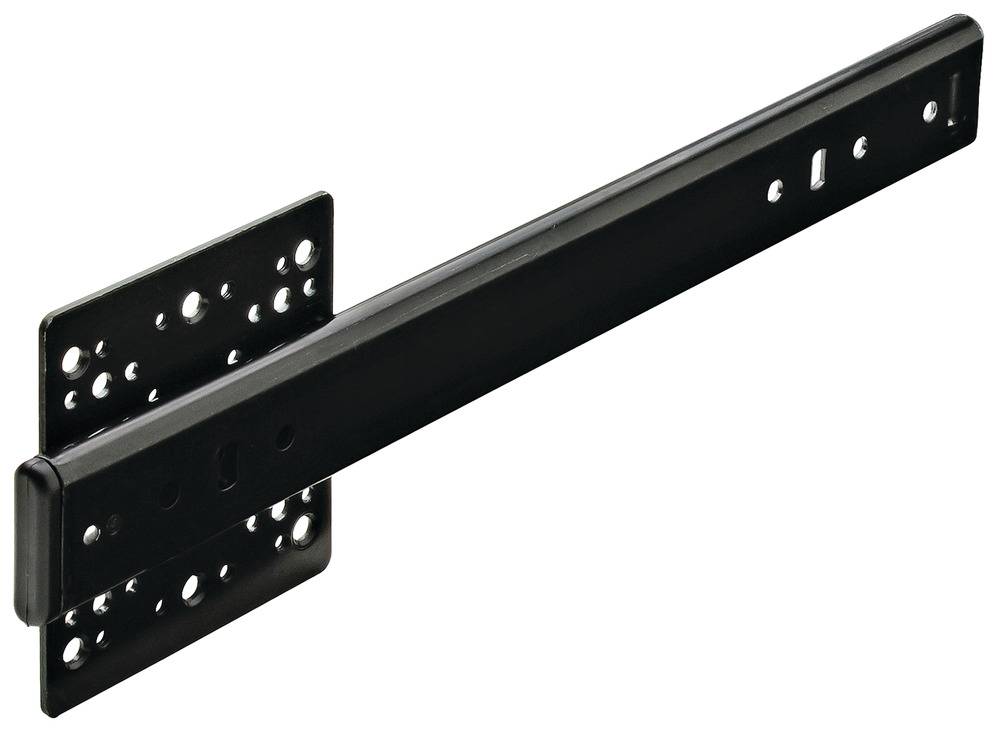

Hafele 408.10.553 Ball Bearing Slide, Pocket Door WF/MF System Length: 22", retraction: 18 3/4"

Product Information

• Description

  Manufacturer: Hafele
  Item: 408.10.553

  Product Title: Ball Bearing Slide, Pocket Door WF/MF System, Length: 22", retraction: 18 3/4"

  Category: Ball Bearing Slide, Pocket Door WF/MF System,

  Item Details …

  -

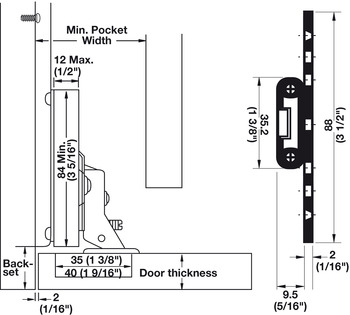

  - Minimum pocket width:

  -

  - Door thickness: 16 – 22 mm (5/8” – 7/8”) = 45 mm (1 3/4”)

  - Door thickness: 22 – 32 mm (7/8” – 1 1/4”) = 57 mm (2 1/4”)

  - Area of application : Recommended for entertainment systems, office furniture systemsand institutional furniture, where the wood follower strip isfinished to match the inside of the cabinet

  - For door height : ?813 mm

  - Note on door height : max. [WF System] 711 mm (28"), [MF system] 813 mm (32") mm

  - For door thickness max. : 1 1/4"

  - For door thickness : ?32 mm

  - Material/finish : Black

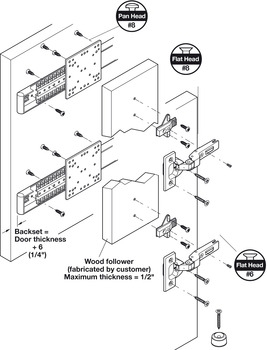

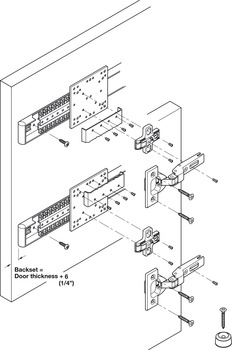

  - Installation : Maximum door height: 711 mm (28”)Maximum door thickness: 32 mm (1 1/4”)Door thickness: 16 – 22 mm (5/8” – 7/8”) = 45 mm (1 3/4”)Door thickness: 22 – 32 mm (7/8” – 1 1/4”) = 57 mm (2 1/4”)


  Additional Information …

  Customer selects metal follower or supplies own follower. Metal follower and components are listed below.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.110



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.95-7.96.pdf

  Hafele 408.10.553, 408-10-553, 40810553, 408.10


  Specifications/Hafele Catalog - Page# FC7.153: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Concealed Hinge, Salice 200 Series, 94°, Half Overlay Mounting (choose one):


  • cup fixing: For screw fixing, Free-swinging, screw mounting, model C2PAG99 cup fixing: For screw fixing, Free-swinging, press fit, model C2RAG99 cup fixing: For screw fixing, Self close, screw-on, model C2PBG99 cup fixing: For screw fixing, Self close, press fit, model C2RBGD9 Half Overlay Mounting, Self close, Logica mounting, model C2JBG99

    329.31.002 329.31.012 329.31.502 329.31.512 329.31.532

    Click to order Click to order Click to order Click to order Click to order



  Concealed Hinge, Salice 200 Series, 94°, Full Overlay Mounting (choose one):


  • cup fixing: For screw fixing, Free Swinging, Screw Mounting, Model C2PAA99 cup fixing: For screw fixing, Free Swinging, press fit, Model C2RAA99 cup fixing: For screw fixing, Self close, screw mounting, model C2PBA99 cup fixing: For screw fixing, Self Close, press fit, model C2RBA99 cup fixing: For screw fixing, Self close, rapido mounting, model C27BA99 Full Overlay Mounting, Self close, logica mounting, model C2JBA99

    329.31.000 329.31.010 329.31.500 329.31.510 329.31.520 329.31.530

    Click to order Click to order Click to order Click to order Click to order Click to order



  Concealed Thick Door Hinge, Salice, 94° Opening Angle, Inset Mounting (choose one):


  • cup fixing: For screw fixing, Free swinging, model CFA5P99 cup fixing: For screw fixing, Self closing, model CFA7P99, nickel-plated

    329.04.635 329.05.632

    Click to order Click to order



  Concealed Thick Door Hinge, Salice, 94° Opening Angle, Half Overlay (choose one):


  • cup fixing: For screw fixing, Free swinging, model CFA5G99 cup fixing: For screw fixing, Self closing, model CFA7G99, nickel-plated cup fixing: For screw fixing, Self closing, model CFA7G66, titanium

    329.04.617 329.05.614 329.05.615

    Click to order Click to order Click to order



  Slide-On Mounting Plate, Salice, with Hinge Arm, Fastening Screws (choose one):


  • slide-on system, pre-mounted Euro screws, 0 mm, model B2R3E09/15 slide-on system, pre-mounted Euro screws, 3 mm, model B2R3E39/15 slide-on system, pre-mounted Euro screws, 9 mm, model B2R3E99/15

    329.80.626 329.80.653 329.80.680

    Click to order Click to order Click to order
